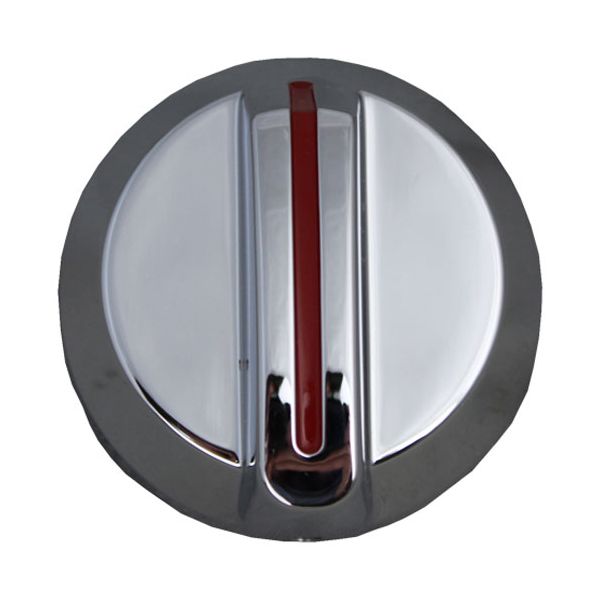

Provides the manual control interface for adjusting operating settings on the range. The Southbend 1184192 Range Knob S-Series mounts onto the control shaft and transfers the operator's rotational input to the connected control mechanism. Turning the knob allows the selected setting to be adjusted through the internal control system. Its secure shaft connection and durable control surface support consistent manual adjustment during normal operation.
Control Input Transfer:
Transfers rotational movement from the operator to the connected control component through the control shaft. As the knob turns, the shaft rotates with it, allowing the internal mechanism to respond to the selected adjustment. This direct mechanical connection provides a practical interface for repeated manual control.
Control Adjustment:
Supports controlled adjustment by providing a defined gripping surface for the operator. Proper engagement with the control shaft helps maintain consistent rotation and prevents unnecessary slipping during normal use.
Replacement Guidelines:
Replace the Range Knob if it is cracked, broken, worn, loose, deformed, or no longer provides proper control adjustment. The part number 1184192 should be verified before replacement to ensure the correct range knob is selected. Replace the knob if deterioration affects control positioning, secure fit, adjustment, or normal range operation.
Common Failure Symptoms:
- Knob feels loose on the control shaft.
- Cracks or breaks are visible on the knob.
- Knob slips while being turned.
- Control setting becomes difficult to position manually.
- Worn or deformed surfaces reduce normal gripping and adjustment.
Equipment Compatibility:
The Southbend 1184192 Range Knob S-Series is intended for applicable Southbend range configurations. Verify the equipment model, part number, and control-shaft configuration before purchase.
Technical Specifications:
Brand: Southbend.
Part Number: 1184192
Product Name: Knob
Equipment Type: Commercial Range
Series: S-Series
