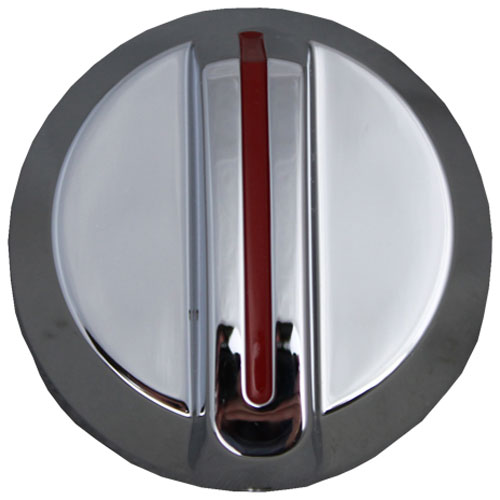

Southbend 1184192 Range Burner Valve Knob 2-1/2" DIA 1/4" D-Stem Flat Up

Control Input Transfer:
Transfers rotational movement from the operator to the connected control component through the control shaft. As the knob turns, the shaft rotates with it, allowing the internal mechanism to respond to the selected adjustment. This direct mechanical connection provides a practical interface for repeated manual control.

Control Adjustment:
Supports controlled adjustment by providing a defined gripping surface for the operator. Proper engagement with the control shaft helps maintain consistent rotation and prevents unnecessary slipping during normal use.

Replacement Guidelines:
Replace the Range Knob if it is cracked, broken, worn, loose, deformed, or no longer provides proper control adjustment. The part number 1184192 should be verified before replacement to ensure the correct range knob is selected. Replace the knob if deterioration affects control positioning, secure fit, adjustment, or normal range operation.

Common Failure Symptoms:

• Knob feels loose on the control shaft.
• Cracks or breaks are visible on the knob.
• Knob slips while being turned.
• Control setting becomes difficult to position manually.
• Worn or deformed surfaces reduce normal gripping and adjustment.

Equipment Compatibility:
The Southbend 1184192 Range Knob S-Series is intended for applicable Southbend range configurations. Verify the equipment model, part number, and control-shaft configuration before purchase.

Technical Specifications:
Brand: Southbend.
Part Number: 1184192
Product Name: Knob
Equipment Type: Commercial Range
Series: S-Series

Step1: Ensure the burner control is in the OFF position.

Step2: Pull the existing knob straight off the valve stem.

Step3: Align the D-stem flat side with the new knob opening.

Step4: Press the knob firmly into place.

Step5: Verify proper alignment and smooth control rotation.

• How do I replace a knob on my equipment?

  To replace a knob, simply pull off the old one and slide the new knob onto the shaft or stem, ensuring a snug fit for proper functionality.

• What materials are these knobs typically made of?

  Knobs are often crafted from durable materials like heat-resistant plastics or metal alloys, ensuring longevity even in high-temperature kitchen environments.

• What maintenance is required for the Southbend 1184192 Burner Valve Knob?

  Regularly inspect the knob for cracks, wear, or loosening that may affect safe burner control. Clean grease and debris from the surface and stem connection to maintain smooth operation. Ensure the knob securely fits the 1/4" D-stem to prevent slipping during adjustment. Replace the knob if it becomes damaged or difficult to turn to maintain safe gas control.

• What are the common issues with the Southbend 1184192 Burner Valve Knob?

  • Knob becoming loose or wobbly.
  • Difficulty turning due to grime buildup.
  • Cracks or damage on the valve knob.
  • Misalignment with the burner valve is causing inaccurate control.

• What is the Southbend 1184192 used for?

  The 1184192 is a burner valve knob used to control burner operation on compatible Southbend equipment.

• Can a damaged range knob affect equipment operation?

  Yes. A cracked, loose, or worn knob can make manual adjustments difficult and reduce control over the connected mechanism.

• What can cause a range knob to become loose?

  Wear at the knob or shaft connection, physical damage, or deterioration of the engagement area can cause looseness.

• Why is the control-shaft connection important?

  A secure connection allows the knob's rotation to transfer properly to the internal control mechanism.

• What should be checked before replacing the range knob?

  Verify the equipment model, part number, knob configuration, and control-shaft style to help ensure the replacement matches the intended application.
