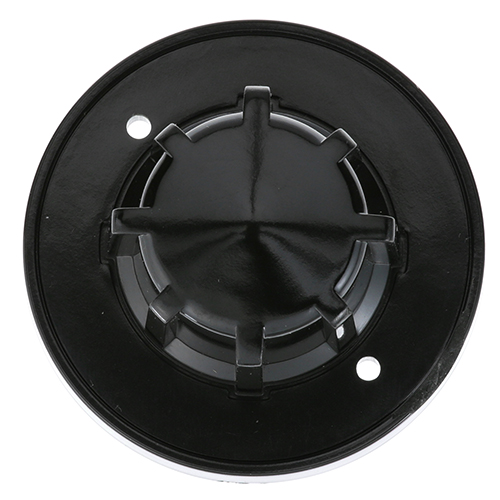

Garland G02716-1 Range Shaft Universal Dial Small

SKU: G02716-1 1-G02716-1 Brand:
Garland
Availability:
In Stock
(0)
$11.50 Price reduced from $14.38
Save $2.88
Have a Question? +1 (866) 863-0907

Specifications:

  • T'Stat Black Knob W/O Insert Overlay
  • [ 2-1/2" Dia ] [ ] [Mount .187 = 3/16"]
  • [Position 4-Way Mounting
  • For T'Stat # 46-1199 [ Temp 150-425 F ]
  • Garland Grill Insert Overlay # 22-1261 Off-100-450
  • If Indicator Insert Needed, Use # 22-1403
  • Garland Grill E22, E24
  • Oven Gpd4

Description

The Garland G02716-1 Range Shaft Universal Dial Small allows the user to customize temperature and functionality regulation of compatible range controls. It works by rotating the shaft attached to it, passing the rotational signal to the internal control mechanism to choose or adjust the settings. The dial is mounted on the front control panel of the range, mounted on the control shaft and positioned with indicator markings to be chosen clearly. It is a component of the user interface and control system of the appliance.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2.5 in
  • Height: 1.25 in
  • Width: 1.25 in

CLEVELAND:

CLEG02716-1

GARLAND:

1314001 224401-1 GL1314001 GLG02716-1

Step1: Turn off appliance power/gas and ensure surface is cool for safety.

Step2: Remove existing knob by pulling straight off the thermostat shaft.

Step3: Align new knob onto shaft, matching flat or D-stem position.

Step4: Push firmly until fully seated and secure on control stem.

Step5: Test rotation to ensure smooth temperature adjustment.

Step6: Restore power and verify proper thermostat operation.

  • What maintenance is required for the Garland G02716-1 Thermostat Knob?

    Keep the knob clean and free from grease buildup to ensure smooth thermostat adjustment. Regularly inspect the set interface for looseness or cracks. Avoid excessive force during operation to prevent internal damage and maintain accurate temperature control.

  • What are common issues with the Garland G02716-1 Thermostat Knob?

    • Loose fit on thermostat shaft causing slipping during adjustment.
    • Cracking or breakage of knob due to repeated force or impact.
    • Faded markings making temperature settings hard to read.
    • Stiff rotation caused by dirt or grease buildup inside mechanism.
