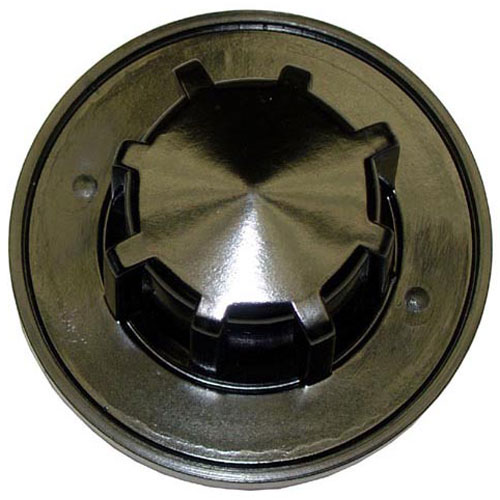

Garland G02716-2 Range Knob Black 4-Way Position 2-1/2" DIA Mount 0.24"

SKU: G02716-2 1-G02716-2 Brand:
Garland
Availability:
In Stock
(0)
$19.48 Price reduced from $24.36
Save $4.88
Have a Question? +1 (866) 863-0907

Specifications:

  • Black Knob, Insert # 221401 Off-Max-Min Not Included
  • [ 2-1/2" Dia ] [ ] [Mount .24"] [Position 4 Way]
  • Garland
  • Broiler 30-40/50, 80B-(40Esd,40Sd,42Esd,42Sd).
  • Series: G-80, Gcm, Ir, Sr1 (S/N 11151 & After), Src.
  • Grill 42-40, 43-(40,40E,50), 46-(40,40E), 47-50(R,S,T).
  • Series: G22, G24, G280, Gv280, H280, H/P280.
  • Range 7-40, 8-40, 76-40R, 78-40R, G22-12H,
  • G22-15W, G24-15H, St286.

Description

The Garland G02716-2 Range Knob Black 2-1/2" DIA is a rotary control unit that is applied to operate positions on commercial appliances. It operates by rotating four specified settings, and the control shaft attached to it is adjusted to control internal operations. It is mounted on the front control panel and is attached to a 0.24" shaft which connects the knob to the control assembly on the appliance. This knob is common in restaurants, and it is a direct interface to the control of equipment operation as a component of the overall control system.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2.5 in
  • Height: 1 in
  • Width: 1 in

GARLAND:

1314002 224314 GL1314002 GLG02716-2

Step1: Turn off equipment, disconnect power supply, ensure surface is cool before handling.

Step2: Remove old knob by pulling or loosening set screw if present.

Step3: Clean shaft area to remove grease or debris.

Step4: Align new knob onto way shaft position correctly.

Step5: Press firmly until fully seated on mount.

Step6: Test rotation through all positions for smooth operation.

Step7: Restore power and verify secure fit during operation.

  • What maintenance is required for the Garland G02716-2 Knob?

    Regularly clean the knob surface to remove grease and food residue that can affect grip. Inspect the mounting point to ensure it stays tight and properly aligned. Avoid using excessive force when turning to prevent internal damage or cracking. Routine checks maintains smooth and accurate control.

  • What are common issues with the Garland G02716-2 Knob?

    • Knob may become loose on the mount causing slipping during adjustment.
    • Cracking or breakage from repeated force or impact pressure.
    • Difficulty rotating due to grease or debris buildup inside mechanism.
    • Worn internal fitting leading to inaccurate position alignment.
