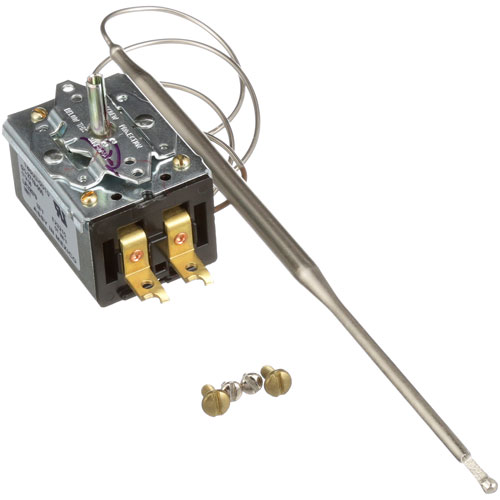

Ranco LR32079E23Z15 Thermostat 24"CAP 5/16" & 3/16" X 8-1/2" BULB

Mechanical Temperature Control:
Detects temperature changes through the sensing bulb and capillary assembly and converts those changes into mechanical switching action. As the sensed temperature reaches the thermostat's operating point, the internal contacts open or close to control the connected circuit. This mechanical response allows the thermostat to regulate temperature-controlled equipment without requiring electronic temperature sensing.

Replacement Guidelines:
Replace the Thermostat if it is damaged, worn, unresponsive, or no longer provides accurate temperature control. The part number LR32079E23Z15, G1 configuration, and 8-1/2" sensing bulb with 24" capillary should be verified before replacement to ensure the correct thermostat is selected. Replace the thermostat if deterioration affects temperature sensing, control response, temperature regulation, or normal equipment operation.

Common Failure Symptoms:

• Inconsistent temperature control.
• Incorrect switching response.
• Irregular heating or cooling cycles.
• Delayed response to temperature changes.
• Equipment failing to maintain the selected operating condition.

Equipment Compatibility:
The Ranco LR32079E23Z15 Thermostat is designed for commercial equipment requiring this specific mechanical thermostat configuration. Verify the equipment model number, part number, sensing bulb dimensions, capillary length, and control specifications before purchasing.

Technical Specifications:
Brand: Ranco
Part Number: LR32079E23Z15
Component Name: Mechanical Thermostat
Sensing Bulb Size: 5/16" & 3/16" x 8-1/2"
Capillary Length: 24"
Configuration: G1

Step1: Turn off power to the appliance before starting.

Step2: Remove the existing thermostat and disconnect wiring.

Step3: Carefully detach the old capillary and bulb from the sensing area.

Step4: Mount the new thermostat in place and secure it with screws.

Step5: Position the 24" capillary and 8-1/2" bulb correctly in the sensing area.

Step6: Reconnect wiring, restore power, and test temperature control for proper operation.

• What maintenance is required for the Ranco LR32079E23Z15 Thermostat?

  Inspect the capillary tube and sensing bulb regularly for kinks, leaks, or physical damage that may affect temperature accuracy. Ensure the bulb is securely positioned and properly insulated for accurate sensing performance. Check electrical connections for tightness and signs of corrosion to prevent control failure. Always disconnect power before servicing to maintain safety.

• What are common issues with the Ranco LR32079E23Z15 Thermostat?

  • Inaccurate temperature readings.
  • Bent or damaged capillary tube.
  • Heater or cooling system is failing to cycle correctly.
  • Loose electrical connections are causing intermittent operation.

• How does the Ranco LR32079E23Z15 regulate temperature?

  It responds to temperature changes through its sensing bulb and capillary assembly to provide the corresponding control response.

• How should the Ranco LR32079E23Z15 G1 Thermostat be maintained?

  Inspect the thermostat, sensing bulb, capillary tube, and connections regularly for signs of damage, kinks, corrosion, or looseness, and follow the manufacturer's service procedures to help maintain reliable temperature control.

• Why is the capillary length important when selecting a replacement?

  The capillary length determines how the sensing bulb can be positioned within the equipment while maintaining the required connection to the thermostat body.

• Can the sensing bulb position affect thermostat performance?

  Yes. Proper sensing bulb placement is important because the thermostat responds to the temperature detected at the sensing location.

• What can cause a thermostat to cycle irregularly?

  Incorrect sensing bulb placement, damaged capillary tubing, worn internal contacts, loose electrical connections, or mechanical component wear can cause inconsistent temperature cycling.
