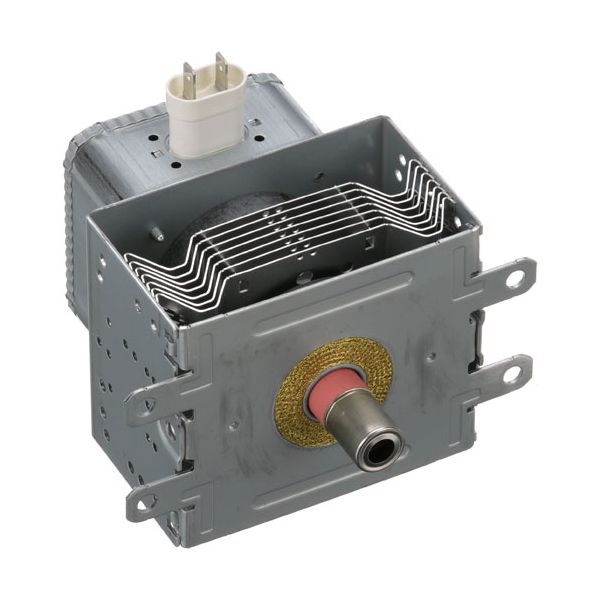

MERRYCHEF P30Z1472 Oven Magnetron
Description
Dimensions:
- Weight: 2.84 lbs
- Length: 5.7 in
- Height: 3.95 in
- Width: 4.9 in
This Part Fits the Following Models
3 modelsGenerates the microwave energy required for cooking in compatible Merrychef commercial ovens. The P30Z1472 Oven Magnetron converts electrical energy into high-frequency electromagnetic waves that provide microwave heating within the cooking cavity. As a primary microwave-generating component, it supports the heating function required during microwave cooking cycles and helps maintain the microwave energy needed for normal oven operation.
Equipment Compatibility:
Compatible with Merrychef commercial oven models 603R, 63R, and EIKON E6. Verify the oven model and application requirements before selecting this magnetron for installation.
Product Specifications:
SKU: P30Z1472
Manufacturer: MERRYCHEF
Product Type: Magnetron
Equipment Type: Oven
Key Features:
- Generates microwave energy required for commercial oven operation.
- Converts electrical energy into high-frequency electromagnetic waves.
- Supports microwave heating during cooking cycles.
Step1: Disconnect oven from power supply and discharge capacitors to avoid electric shock.
Step2: Remove outer casing and access magnetron compartment.
Step3: Detach old magnetron, noting waveguide and wiring positions.
Step4: Install new magnetron securely with mounting screws.
Step5: Reconnect wiring and waveguide correctly.
Step6: Reassemble casing and perform safety check before powering on.
Step7: Ensure proper grounding and inspect seals for microwave leakage before testing.
-
What maintenance is required for the MERRYCHEF P30Z1472 Magnetron?
Regularly inspect the magnetron connections, cooling fan, and surrounding components for grease buildup or damage. Keep the oven interior and air vents clean to prevent overheating. Ensure power is disconnected before servicing.
-
What are common issues with the MERRYCHEF P30Z1472 Magnetron?
- Weak or uneven heating performance.
- Overheating caused by blocked airflow or failed cooling fan.
- Arcing in waveguide from grease or food residue buildup.
- Intermittent cooking results or sudden shutdowns.
