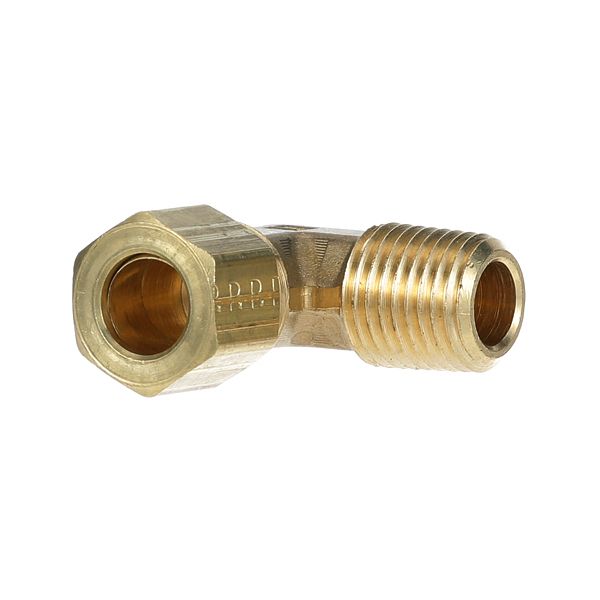

Imperial 30292 Range Male Elbow Brass 90° 3/8" C MIPL x 1/4"

Rating:
5 5 1
1  Review Add Your Review
$6.08
In stock
SKU
30292
Add to Wish List
Plumbing Parts, Fittings/Couplings,
Manufacturer:
The Imperial 30292 Range Male Elbow Brass 90°C 3/8" MIPL x 1/4" is a threaded brass plumbing component that directs the flow of gases or fluids at a right angle between components in commercial ranges. The compression inlet and male thread outlet 3/8" and 1/4" respectively, provide safe mechanical connections between supply lines and control valves. It is installed where a direction change is required, where it joins rigid or flexible piping. In the supply system it also assists in the correct routing of gas to internal parts, ensuring tight seals.

Dimensions

  • Length: 1.375 In
  • Width: 1.25 In
  • Height: 0.625 In
  • Weight: 0.021 lbs
https://partsfe.com/media/catalog/product/i/m/imperial-30292-male-elbow-19479-2.jpg

Product Notes

  • Brass Male 90 Degree Elbow,
  • 1/4" Mpt X 3/8" Cct Nut & Ferrule.
  • Star Griddle 824, 836, 848, 860, 872 T
Write Your Own Review
You're reviewing:Imperial 30292 Range Male Elbow Brass 90° 3/8" C MIPL x 1/4"
Your Rating
FAQS
Customer Questions
What maintenance is required for the Imperial 30292 Male Elbow?

Inspect the male elbow regularly for leaks, corrosion, or loose fittings. Tighten connections and ensure proper alignment to prevent pressure loss or damage. Clean debris buildup and replace the fitting if wear or cracks appear.

What are common issues with the Imperial 30292 Male Elbow?

  • Leakage at joint.
  • Thread wear or stripping.
  • Misalignment causing pressure drop.
  • Reduced sealing efficiency.
  • Loose fitting connection.
  • Pressure leakage during operation.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off gas or power supply and let equipment fully cool before starting.

Step2: Remove the existing elbow fitting and clean all connection threads thoroughly.

Step3: Apply the thread sealant to the male threads.

Step4: Thread the new elbow into position by hand to avoid cross-threading.

Step5: Tighten securely with a proper tool, ensuring correct alignment of piping.

Step6: Restore supply and test all joints for leaks using an proper leak-detection solution.
