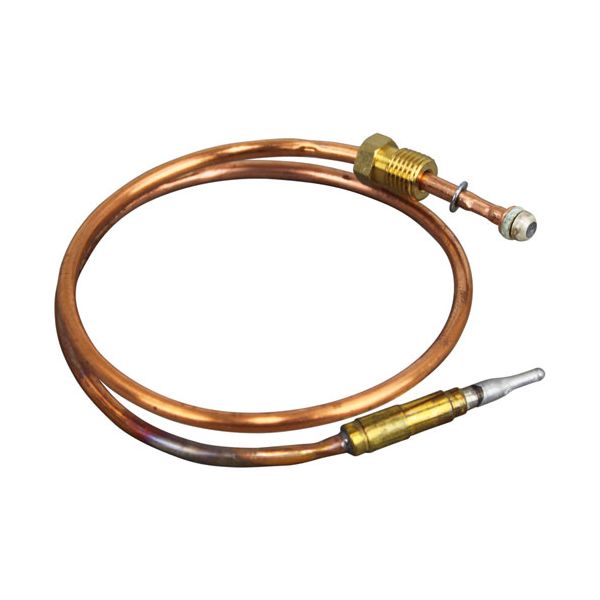

Garland 4523505 Range SIT Thermocouple 18"

SKU: 4523505 1-4523505 Brand:
Garland
Availability:
In Stock
(0)
$25.30 Price reduced from $45.18
Save $19.88
Have a Question? +1 (866) 863-0907

Specifications:

  • Metric Thermocouple, 18" Sit Type
  • 9Mm Thread (M9-1.0)
  • Garland
  • Range Hot Top & Griddle Series: G24, Gd, Ms. Mst, Stw286.

Description

The Garland 4523505 Range SIT Thermocouple 18 is used to provide safety by sensing and regulating the flow of gas to the burner. This thermocouple operates by producing a low level of electrical current when heated by the pilot flame and this activates the gas valve to stay open. In case the flame extinguishes, the current is automatically cut off, and the valve of the gas closes so that there are no leaks. It is constructed in an 18-inch length that is easy to install and ensures the safety and efficiency of the cooking performance.

Dimensions:

  • Weight: 0.05 lbs
  • Length: 5.5 in
  • Height: 0.6 in
  • Width: 3 in

GARLAND:

2200600 GL2200600 GL4523505

Step1: Turn off gas supply and power, allow unit to cool completely.

Step2: Remove burner grates and access panel to expose thermocouple.

Step3: Disconnect old thermocouple from valve and bracket.

Step4: Route new thermocouple in same path, avoid kinks.

Step5: Secure tip near pilot flame and tighten connection at control valve.

Step6: Reassemble components and restore gas supply.

Step7: Test ignition and verify flame safety shutdown.

  • What maintenance is required for the Garland 4523505 Thermocouple?

    Inspect the thermocouple regularly for soot, corrosion, or loose connections and clean gently with a soft cloth. Ensure it is properly aligned with the pilot flame for accurate sensing. Tighten fittings securely to maintain consistent ignition performance and safety.

  • What are common issues with the Garland 4523505 Thermocouple?

    • Weak or inconsistent pilot flame detection due to carbon buildup.
    • Open circuit or no continuity from worn thermocouple tip.
    • Intermittent ignition failure caused by loose or oxidized connections.
    • Delayed signal response causing slow burner ignition.
