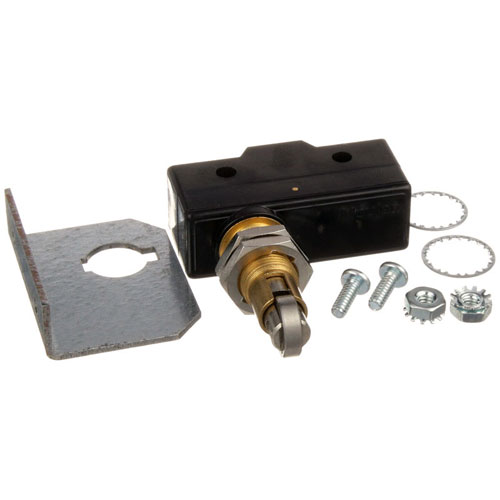

Blodgett 35702 Oven SPST Door Micro Switch Kit 2 Holes 1 Oc

SKU: 35702 1-35702 Brand:
Blodgett
Availability:
In Stock
(1)
$103.33 Price reduced from $203.66
Save $100.33
Have a Question? +1 (866) 863-0907

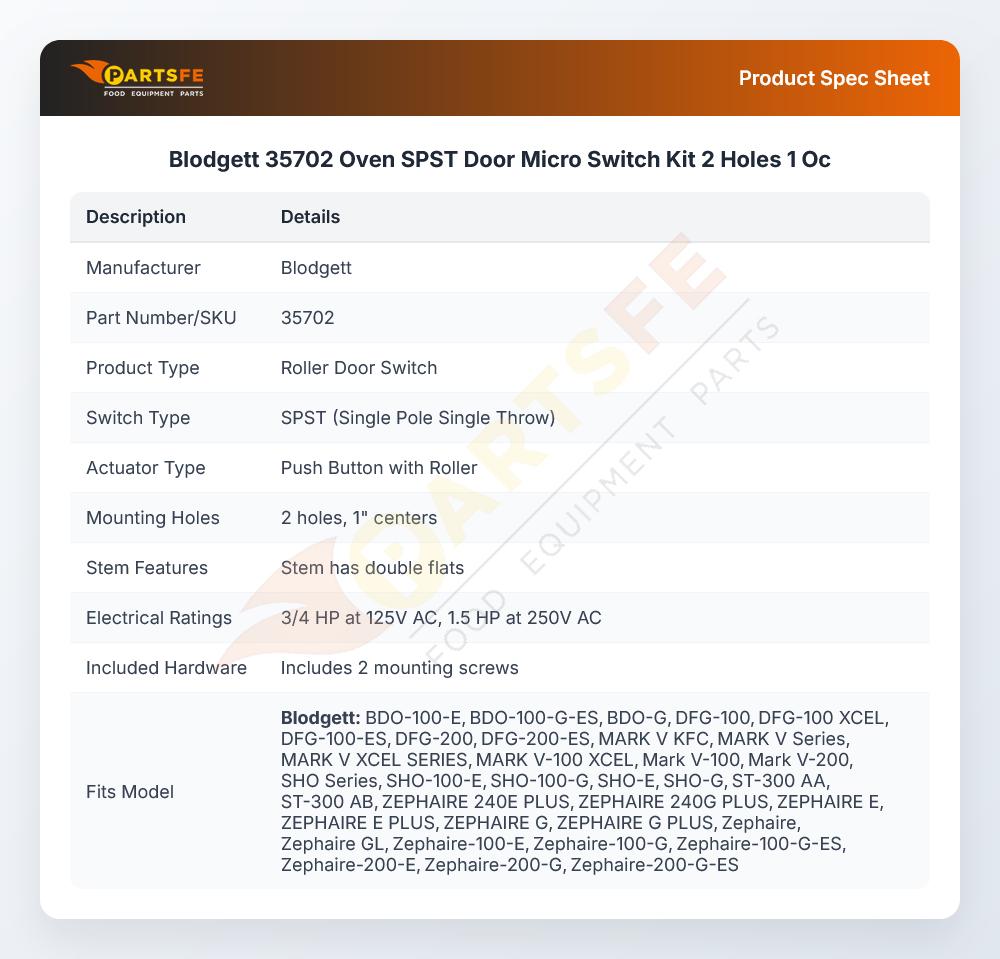

Specifications:

  • Door Micro Switch W/ Bracket
  • [ Push Button W/Roller ] [ Fits Hole 2 Holes, 1" Ctrs ]
  • [ No ] [ Spst ]
  • [ Stem Has Double Flats ], 3/4Hp - 125V, 1.5Hp - 250V
  • Includes 2 Mounting Screws.
  • Blodgett
  • Oven Mark V (Between 7/84 And 8/31/00), Zephaire E & G
  • (Before 8/31/00), Dfg 100,200 After 07/84.

Description

The Blodgett 35702 Oven Door Micro Switch Kit w/Hardware sense the position of the oven door and transmit an electrical signal to activate heating functions based on the position of the oven door. It ensure that the heating elements are turned on or turned off according to whether the door is open or closed, so that the operational control is appropriate. This micro switch kit is mounted close to the oven door mechanism, and it is part of the control circuit to accurately detect the door movement and to make the system respond accordingly.

Dimensions:

  • Weight: 0.18 lbs
  • Length: 5 in
  • Height: 0.88 in
  • Width: 2.75 in

BLODGETT:

35193 BL35193 BL35702

Step1: Disconnect power before accessing the oven door switch assembly.

Step2: Locate the micro switch near the door mechanism.

Step3: Disconnect the wiring from the existing switch.

Step4: Remove the old switch and mounting hardware.

Step5: Install the new switch from the kit.

Step6: Reconnect wiring securely.

Step7: Reassemble components and restore power.

Step8: Test switch operation with door movement.

  • What maintenance is required for the Blodgett 35702 Door Micro Switch Kit?

    Regularly check the oven door micro switch for proper operation and ensure it actuates smoothly when the oven door is opened or closed. Keep the switch area clean of grease, crumbs, or debris that can prevent contact. Verify wiring connections remain tight and replace the switch if intermittent faults occur.

  • What are common issues with the Blodgett 35702 Door Micro Switch Kit?

    • Switch failing to detect door open/close status.
    • Intermittent contact due to worn internal contacts.
    • Loose wiring connections are affecting the signal.
    • Switch sticking or failing to reset properly.
