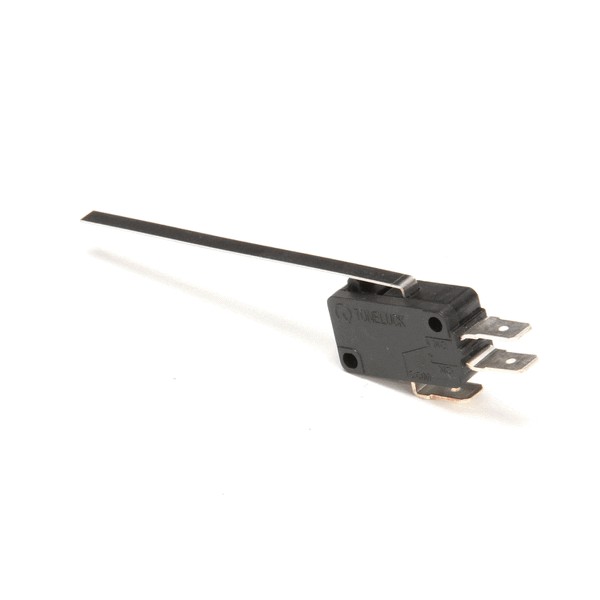

Moffat M003004 Microswitch

SKU: M003004 1-M003004 Brand:
Moffat
Availability:
In Stock
(0)
$25.14
Have a Question? +1 (866) 863-0907

Specifications:

  • Microswitch,
  • 16 A 125/250 Vac, 0.4 A 125 Vdc, 0.2 A 250 Vdc
  • Actuator = 3" Long 3/16" Wide, 3 (1/4") Terminals.
  • Fits Moffat Models~
  • E25, E25B, E27, E27Ms, E32, G32

Description

Microswitch

Dimensions:

  • Weight: 0.02 lbs
  • Length: 4 in
  • Height: 0.5 in
  • Width: 1.25 in

MOFFAT:

003004

Step1: Disconnect power supply before starting to avoid electrical shock.

Step2: Remove access panel from the appliance carefully.

Step3: Locate the microswitch mounting position inside unit.

Step4: Disconnect wiring, noting terminal positions for correct reconnection.

Step5: Remove old microswitch from its bracket.

Step6: Install new microswitch ensuring correct alignment and secure fit.

Step7: Reconnect wiring securely to original terminals.

Step8: Restore power and test operation for safe function.

  • What maintenance is required for the Moffat M003004 Microswitch?

    Inspect contacts for wear, ensure secure mounting, and clean dust buildup periodically. Proper maintenance ensures accurate switching performance and prevents electrical faults. Disconnect power before servicing and check wiring connections to avoid overheating or intermittent operation issues.

  • What are common issues with the Moffat M003004 Microswitch?

    • Contact wear causing intermittent switching.
    • Electrical arcing or pitting on terminals.
    • Sticking or slow actuation mechanism.
    • Loose or corroded wiring connections.
    • Misalignment causing improper activation.
