Genuine OEM Part

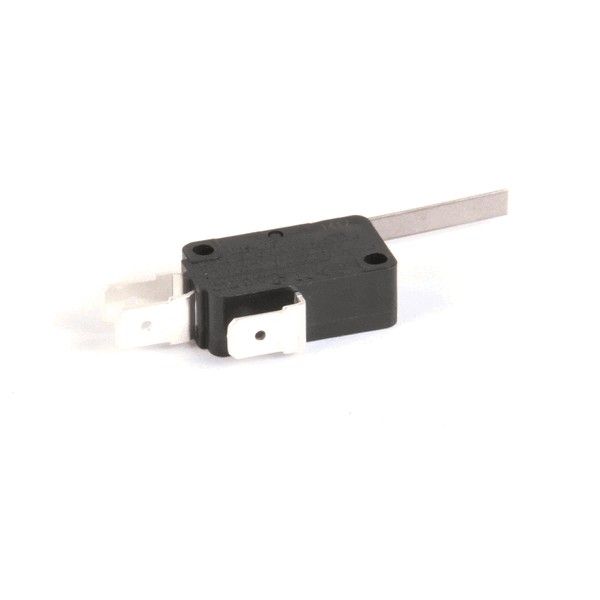

main product photo

Moffat M024802 Convection Oven Microswitch

Rating:
5 5 1
1  Review Add Your Review
$15.09
Out of stock
SKU
M024802
Add to Wish List
Electrical & Hardware, Switches & Relays,
Manufacturer:
The Moffat M024802 Convection Oven Microswitch is a system that is used to control heating cycles based on the placement of the appliance parts and transmits electrical signals. It is a small but vital switch in the internal circuitry of the oven, which is used to connect or disconnect as required. The microswitch is designed to fit within the door or control assembly of the oven where it is installed in such a way that it reacts to any movement of the parts of the system.

Dimensions

  • Length: 3.25 In
  • Width: 1.125 In
  • Height: 0.5 In
  • Weight: 0.03 lbs
https://partsfe.com/media/catalog/product/m/o/moffat-m024802-microswitch-75933.jpg

Product Notes

  • Microswitch, Door
  • 16 A 125/250 V, 0.4 A 125 Vdc, 0.2 A 250 Vdc
  • Actuator = 1-5/8" Long
  • Fits Moffat Models~
  • E32D5, E32M, E32Ms, G32D5, G32M, G32Ms
MOFFAT:
Reviews 1
Write Your Own Review
You're reviewing:Moffat M024802 Convection Oven Microswitch
Your Rating
FAQS
Customer Questions
What maintenance is required for the Moffat M024802 Microswitch?

Perform periodic inspection of the microswitch to ensure smooth actuator movement without obstruction. Check electrical contacts for wear and clean dust or debris from the housing, accurate switching. Isolate power before servicing and verify secure mounting with regular continuity tests.

What are common issues with the Moffat M024802 Microswitch?

  • Actuator sticking or slow response due to internal wear.
  • Intermittent electrical contact causing signal failure.
  • Mechanical misalignment preventing proper activation.
  • Contact corrosion leading to inaccurate switching.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect power supply and ensure equipment is isolated.

Step2: Remove the access panel to reach the switch assembly area.

Step3: Label and disconnect all wiring terminals from the existing microswitch.

Step4: Remove mounting screws and carefully take out the old switch from the bracket.

Step5: Install the new microswitch in the same position, ensuring the actuator aligns with the door cam or rod.

Step6: Reconnect wiring, secure the panel, restore power, and test door actuation for proper switching response.
