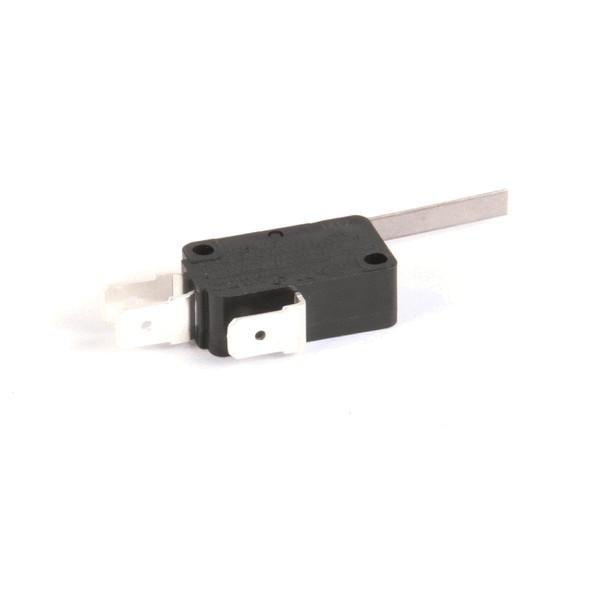

Moffat M024802 Convection Oven Microswitch

SKU: M024802 1-M024802 Brand:
Moffat
Availability:
In Stock
(1)
$15.09
Have a Question? +1 (866) 863-0907

Specifications:

  • Microswitch, Door
  • 16 A 125/250 V, 0.4 A 125 Vdc, 0.2 A 250 Vdc
  • Actuator = 1-5/8" Long
  • Fits Moffat Models~
  • E32D5, E32M, E32Ms, G32D5, G32M, G32Ms

Description

The Moffat M024802 Convection Oven Microswitch is a system that is used to control heating cycles based on the placement of the appliance parts and transmits electrical signals. It is a small but vital switch in the internal circuitry of the oven, which is used to connect or disconnect as required. The microswitch is designed to fit within the door or control assembly of the oven where it is installed in such a way that it reacts to any movement of the parts of the system.

Dimensions:

  • Weight: 0.03 lbs
  • Length: 3.25 in
  • Height: 0.5 in
  • Width: 1.13 in

This Part Fits the Following Models

5 models

MOFFAT:

024802

Step1: Disconnect power supply and ensure equipment is isolated.

Step2: Remove the access panel to reach the switch assembly area.

Step3: Label and disconnect all wiring terminals from the existing microswitch.

Step4: Remove mounting screws and carefully take out the old switch from the bracket.

Step5: Install the new microswitch in the same position, ensuring the actuator aligns with the door cam or rod.

Step6: Reconnect wiring, secure the panel, restore power, and test door actuation for proper switching response.

  • What maintenance is required for the Moffat M024802 Microswitch?

    Perform periodic inspection of the microswitch to ensure smooth actuator movement without obstruction. Check electrical contacts for wear and clean dust or debris from the housing, accurate switching. Isolate power before servicing and verify secure mounting with regular continuity tests.

  • What are common issues with the Moffat M024802 Microswitch?

    • Actuator sticking or slow response due to internal wear.
    • Intermittent electrical contact causing signal failure.
    • Mechanical misalignment preventing proper activation.
    • Contact corrosion leading to inaccurate switching.
