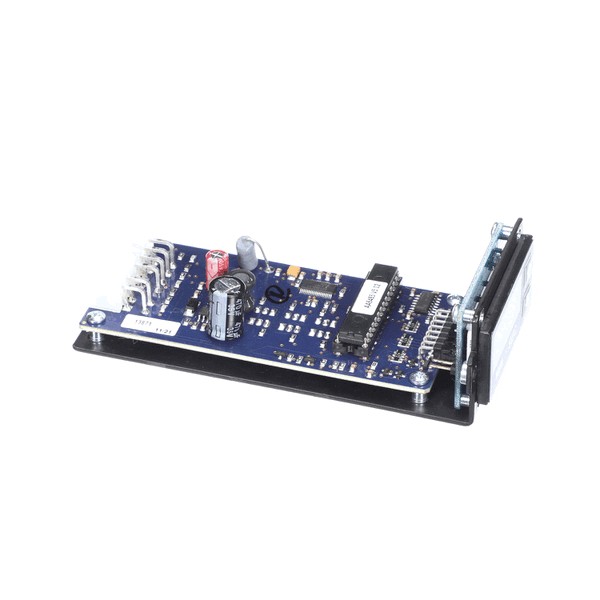

Middleby Marshall 72533 Gas Oven Speed Control Board BLDC 24V

SKU: 72533 1-72533 Brand:
Middleby Marshall
Availability:
In Stock
(0)
$898.07 Price reduced from $1,228.95
Save $330.88
Have a Question? +1 (866) 863-0907

Specifications:

  • Type: BLDC Speed Control Board
  • Voltage: 24V

Description

The Middleby Marshall 72533 Gas-Oven Speed Control Board controls the speed of the motor by controlling the electrical signals sent to the BLDC motor when using the appliance. The input adjustment of the output voltage is carried out by the rotational speed and airflow. This control board is placed in compatible gas ovens, normally placed in the control compartment together with other electronic parts. It connects to the electrical system of the oven to coordinate the work of the motors. The board is powered by 24 volts, and maintains a steady speed throughout the cooking cycles.

Step1: Turn off gas supply and disconnect power to the oven.

Step2: Open the control panel and locate the existing speed control board.

Step3: Carefully disconnect wiring, noting positions or labeling them.

Step4: Remove mounting screws and take out the old board.

Step5: Install the new board, secure screws, and reconnect wiring correctly.

Step6: Restore power and gas, then test operation safely.

  • What maintenance is required for the Middleby Marshall 72533 Control Board?

    Inspect the control board regularly for dust accumulation and moisture exposure. Ensure stable supply and secure wiring connections. Keep cooling vents clear to prevent overheating. Periodic calibration and professional inspection help maintain consistent oven motor speed control.

  • What are common issues with the Middleby Marshall 72533 Control Board?

    • Controller failure due to power fluctuations.
    • Overheating causing intermittent motor speed errors.
    • Faulty wiring leading to communication loss.
    • Moisture damage affecting circuit performance.
    • Inconsistent fan speed regulation.
