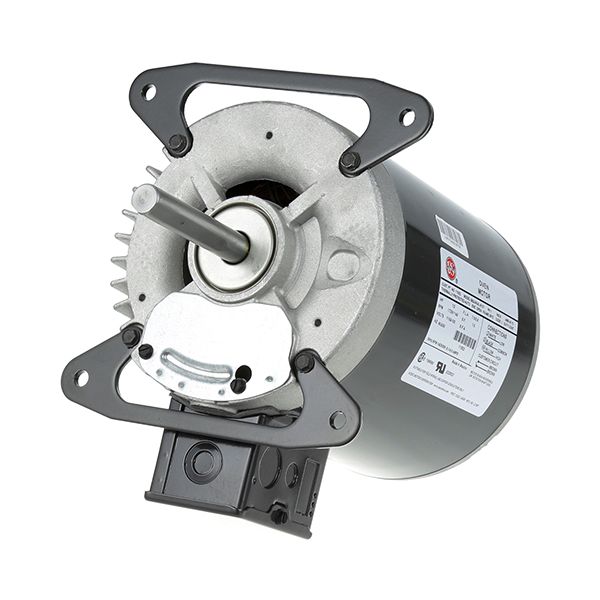

Driving the blower assembly within a commercial convection oven, the Duke 155827 Convection Oven Motor is an OEM motor component that provides the rotational movement required for air circulation. Its 2-speed design provides two operating levels, with 1/2-1/4 HP identifying the motor power at the corresponding speeds. The 1725/1140 RPM ratings identify the two rotational speeds, while 120V specifies the required electrical supply. Consistent motor performance helps maintain the required air movement throughout the operating cycle.
Motor Rotation:
Electrical power is converted into mechanical rotation through the motor, producing the shaft movement required to drive the connected blower assembly. This rotational output allows the blower wheel to operate and move air through the oven cavity during convection operation.
Two-Speed Airflow Drive:
Providing selectable operating levels, the motor allows the connected blower assembly to adjust its rotational operation according to the oven's airflow requirements. This variable motor operation supports the movement of heated air through the cooking chamber during the convection cycle.
Replacement Guidelines:
Replace the 2-Speed Blower Motor Assembly if the motor fails to start, develops abnormal noise, operates inconsistently, or shows physical or electrical damage. Verify part number 155827, 1/2-1/4 HP rating, 1725/1140 RPM speeds, and 120V voltage rating before replacement to ensure you select the correct blower motor assembly.
Common Failure Symptoms:
- Blower does not operate during the expected equipment cycle.
- Blower speed is reduced or inconsistent.
- One of the two operating speeds is unavailable.
- Motor operation produces unusual mechanical noise.
- Airflow from the blower is reduced or absent.
Equipment Compatibility:
The Duke 155827 Convection Oven Motor 2-Speed 1/2-1/4HP 1725/1140 RPM 120V is an OEM motor component designed for Duke commercial convection ovens using the corresponding two-speed blower motor assembly. Verify the oven model, motor configuration, shaft arrangement, and blower connection before selecting the component.
Technical Specifications:
Part Number: 155827
Brand: Duke
Motor Type: 2-Speed
Horsepower: 1/2-1/4 HP
Speed: 1725/1140 RPM
Voltage: 120V
Component Type: Blower Motor
Equipment Type: Commercial Convection Oven
