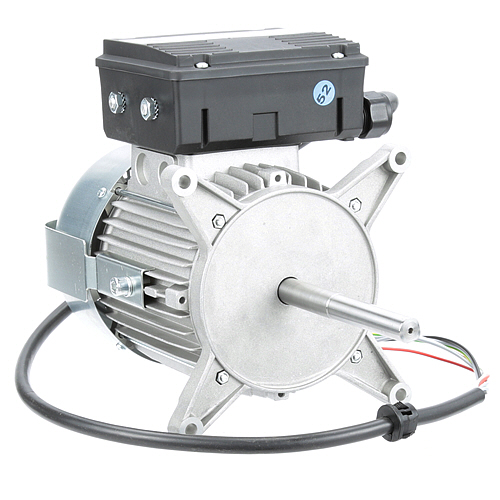

Blodgett 56966 Oven Motor 3/4HP AC500

Motor Rotation:
Electrical power supplied to the motor produces rotational movement at the motor shaft. This rotation drives the connected blower wheel, providing the mechanical motion required for the oven's air-circulation system. The motor's rotational output allows the blower assembly to operate as part of the convection heating cycle.

Convection Airflow Drive

Driving the convection blower during oven operation, the motor supplies the rotational force needed to move heated air through the cooking chamber. Blower movement circulates air around the oven cavity, supporting the convection cooking process and maintaining the intended airflow path within the equipment.

Replacement Guidelines:
Replace the Blodgett 56966 Convection Oven Blower Motor when the motor no longer provides the required rotational output, the blower fails to operate correctly, or the motor assembly shows physical damage. Select the replacement by matching the motor configuration, horsepower, electrical requirements, shaft arrangement, blower connection, and applicable Blodgett oven model.

Common Failure Symptoms:

• Blower wheel fails to turn when the convection fan is activated.
• Convection airflow is weak or noticeably reduced during operation.
• Blower operation becomes intermittent or stops unexpectedly.
• Motor produces excessive humming, grinding, or abnormal operating noise.
• Motor shaft or blower connection shows excessive play or abnormal movement.

Equipment Compatibility:
The Blodgett 56966 Convection Oven Blower Motor 3/4HP 115V AC500 XCEL/DFG/SHO is an OEM component designed for Blodgett commercial convection oven equipment using the corresponding blower motor arrangement. Its listed applications include AC500, XCEL, DFG, and SHO oven configurations.

Technical Specifications:
Part Number: 56966
Brand: Blodgett
Component Name: Convection Oven Blower Motor
Horsepower: 3/4 HP
Voltage: 115V AC
Applicable Series: AC500 / XCEL / DFG / SHO

Step1: Turn off and unplug the oven to prevent electrical shock.

Step2: Remove the oven access panel to expose the motor assembly.

Step3: Disconnect the wiring harness from the old motor carefully.

Step4: Unscrew and remove the old motor from its mounting bracket.

Step5: Install the new motor and secure it with mounting screws.

Step6: Reconnect the wiring, replace the access panel, and test operation.

• What maintenance is required for the Blodgett 56966 Oven Motor?

  Regularly inspect the Blodgett 56966 Oven Motor for grease buildup, dust, and debris that may restrict airflow inside the convection system. Clean the blower wheel and surrounding components to maintain proper air circulation and even heat distribution. Check electrical connections and mounting bolts for tightness. Always disconnect power before servicing to prevent electrical shock and protect internal motor components.

• What are common issues with the Blodgett 56966 Oven Motor?

  • Motor fails to start or stalls during use.
  • Excessive noise or vibration.
  • Overheating under load.
  • Inconsistent or reduced rotational speed.

• What maintenance is required for the Blodgett 56966 Motor?

  Lubricate motor bearings using the recommended oil to ensure smooth rotation. Check for alignment of the fan and motor assembly. Tighten mounting brackets if necessary. Monitor for unusual hums or vibrations during operation for safe performance.

• What are common issues with the Blodgett 56966 Motor?

  • Motor failing to start.
  • Unusual vibrations or noise.
  • Overheating during operation.
  • Intermittent stopping.

• What does the 3/4 HP rating indicate on the Blodgett 56966 blower motor?

  The 3/4 HP rating identifies the motor's specified horsepower and mechanical drive capacity for compatible oven applications.

• How does the blower motor generate rotational movement?

  The motor converts electrical energy into mechanical rotation, causing its output shaft to turn and provide drive to the connected blower.

• How does the blower motor contribute to oven airflow?

  The motor drives the blower, which moves air through the oven's circulation pathway and cooking chamber according to the equipment's airflow design.

• Why can oven blower motors have different horsepower ratings?

  Blower motor horsepower can vary according to the oven configuration, connected blower assembly, and mechanical drive requirements of the equipment.

• Which Blodgett oven configurations are associated with the 56966 motor?

  The Blodgett 56966 is associated with compatible AC500, XCEL, DFG, and SHO oven configurations requiring the corresponding blower motor.
