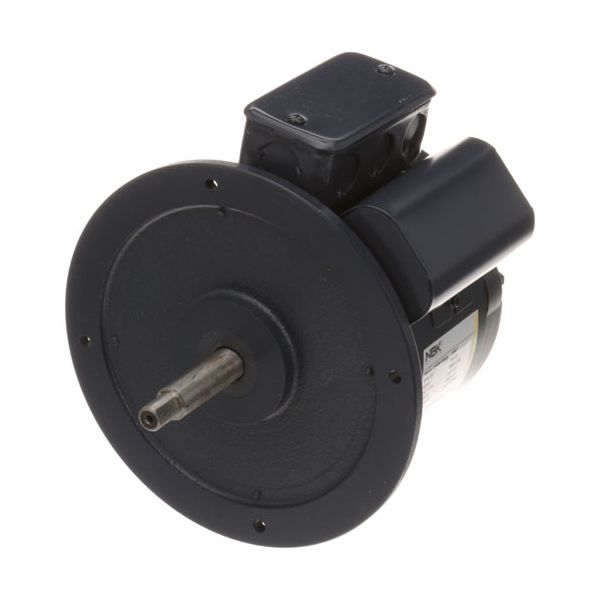

main product photo

Jade Range 3098710V Convection Oven 1/4HP Motor 60Hz 1725 RPM 115V

Be the first to review this product
Special Price $195.17 Regular Price $367.56
In stock
SKU
3098710V
Add to Wish List
Electrical & Hardware, Motors & Pumps, Shop by manufacturers
Manufacturer:
The Jade Range 3098710V Convection Oven Motor works by operating the fan system that distributes hot air uniformly all over the oven cavity during cooking or baking processes. It operates by changing electrical energy into mechanical rotation to move the fan blades to ensure that the air moves uniformly to ensure even distribution of temperatures. This motor is generally mounted at the back of the interior of the oven and directly linked to the fan assembly where it provides adequate airflow over the heating elements and the inside of the cooking chamber.

Dimensions

  • Length: 11.25 In
  • Width: 11 In
  • Height: 11 In
  • Weight: 21.22 lbs
https://partsfe.com/media/catalog/product/j/a/jade-range-3098710v-convection-oven-1-4hp-motor-60hz-1725-rpm-115v-36655-2.jpg

Product Notes

  • 115V/60Hz, 1725 RPM, 4.4A, 1/4Hp, 1Ph, Frame = 56Yz
JADE RANGE:
Reviews
Write Your Own Review
You're reviewing:Jade Range 3098710V Convection Oven 1/4HP Motor 60Hz 1725 RPM 115V
Your Rating
FAQS
Customer Questions
What maintenance is required for the Jade Range 3098710V Motor?

Regularly clean the motor to remove dust and grease, and inspect wiring for wear. Lubricate moving parts if recommended, and ensure proper ventilation to prevent overheating. Routine checks prevent malfunctions and maintain safe, efficient operation.

What are common issues with the Jade Range 3098710V Motor?

  • Motor overheating or stalling.
  • Excessive vibration or unusual noise.
  • Electrical connection faults.
  • Reduced fan speed affecting cooking performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off oven power and unplug the unit completely.

Step2: Allow the motor area to cool before servicing.

Step3: Remove the rear panel to access motor assembly.

Step4: Disconnect wiring and label all connections carefully.

Step5: Unbolt old motor and remove from bracket.

Step6: Install new motor, align shaft, tighten bolts, reconnect wiring, and test operation.
