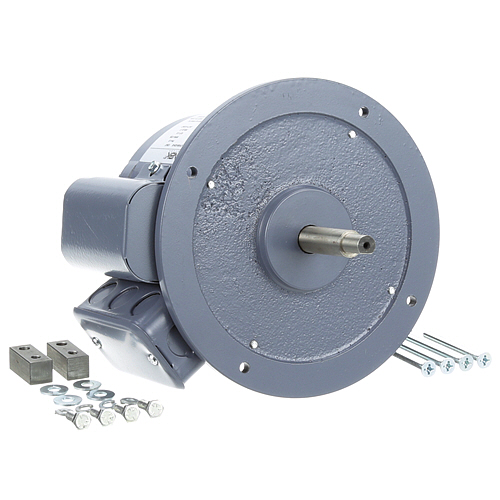

Jade Range 8400119000 Oven Motor

SKU: 8400119000 1-8400119000 Brand:
Jade Range
Availability:
Out of Stock
(1)
$1,212.30 Price reduced from $2,363.15
Save $1,150.85
Have a Question? +1 (866) 863-0907

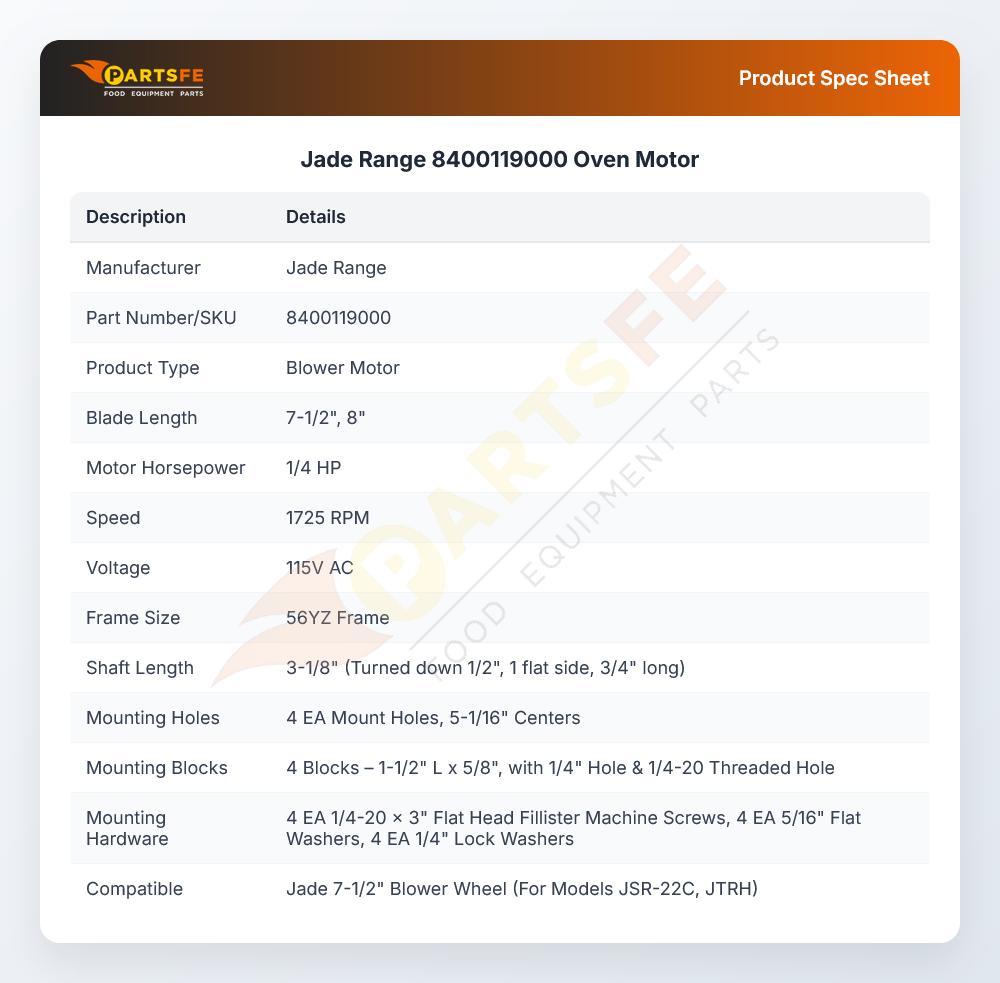

Specifications:

  • 115V, 1725 RPM, 1/4Hp, 56Yz Frame, 3-1/8" Long Shaft,
  • "Turned Down 1/2" 1 Flat Side, 3/4" Long", 4Ea Mt Holes
  • 5-1/16" Ctrs, 4 Blocks 1-1/2" Long X 5/8", 1/4" Hole &
  • 1/4-20 Thd Hole, 4Ea 1/4-20 X 3" Fh Fhil Ms, 4Ea 5/16" Flat
  • Washers, 4Ea 1/4" Lock Washers
  • Motor Only = Ap# 8010454
  • Jade 7-1/2" Blower Wheel For Model Jsr-22C,Jtrh #26-4016
  • Jade 8" Blower Wheel For Model Jslb,Jsr(Except 22C)
  • # 26-2344
  • Jade
  • Oven Jslb,Jsr,Jtrh

Description

The Jade Range 8400119000 Motor Kit 1/4HP 115V 60Hz is an alternative motor assembly that operates the fan system in the oven, which provides the circulation of air in order to provide uniform heat distribution during cooking or baking. The motor is 115 volts with 60 hertz and gives 1/4 horsepower output to perform in a commercial kitchen. It is installed in the blower system of the oven and is vital in ensuring that all the oven compartments have a consistent temperature and efficient cooking results when the appliance is in constant use.

Dimensions:

  • Weight: 19.1 lbs
  • Length: 12.5 in
  • Height: 14.5 in
  • Width: 12 in

JADE RANGE:

840011900

Step1: Disconnect power supply and confirm oven is cool before servicing.

Step2: Remove rear panel and note wiring connections for reference.

Step3: Detach faulty motor and mount new Range securely.

Step4: Reconnect wires as labeled and ensure tight fittings.

Step5: Restore panel, power on, test motor operation carefully.

Step6: Wear insulated gloves and follow lockout/tagout procedures to avoid electric shock.

Step7: Verify alignment and spin shaft manually before restoring power.

  • What maintenance is required for the Jade 8400119000 Motor?

    Clean the range motor housing regularly to prevent grease and dust buildup. Inspect electrical connections for tightness and signs of damage. Lubricate moving components if specified by the manufacturer. Ensure proper ventilation to avoid overheating during continuous oven operation.

  • What are common issues with the Jade 8400119000 Motor?

    • Motor overheating due to restricted airflow or heavy grease buildup.
    • Worn bearings causing loud noise or vibration.
    • Electrical failure from loose or damaged wiring connections.
    • Reduced performance or inconsistent rotation under load.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • No Noise Issue
    Windell —

    Great motor, simple to operate
