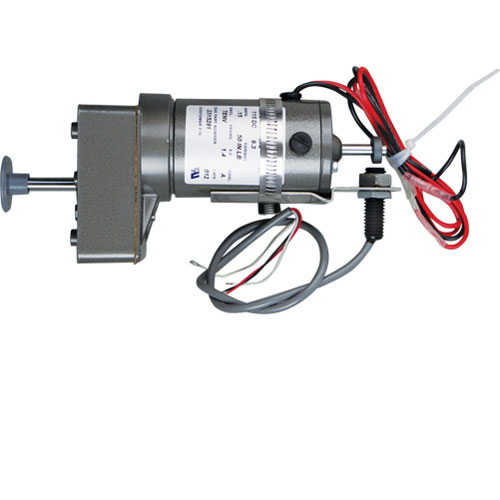

Middleby Marshall 44695 Drive Motor Assembly

SKU: 44695 1-44695 Brand:
Middleby Marshall
Availability:
In Stock
(0)
$714.30 Price reduced from $977.95
Save $263.65
Have a Question? +1 (866) 863-0907

Specifications:

  • Gear Motor,
  • 115Vdc, 9.3 RPM, .15A. 50" Lbs. Torque
  • Power Leads, 18 Gauge (1) Red, Fused, 29".
  • (1) Black, 28"
  • Magnetic Pick-Up Harness, 30" W/ Red, White, Black And
  • Ground Wires. Threaded End W/Palnut 1/2"-13 X 1-3/4".
  • Num2315291
  • Middleby Conveyor Oven: Ps536

Description

The Middleby Marshall 44695 Drive Motor Assembly is an electrical energy-to-rotational converter along with other mechanical parts in a commercial system. The drive shafts and the coupled components are driven at a regulated speed to facilitate constant equipment operation throughout the cooking periods. It is attached to the drive section, and it is parallel to the conveyor or internal drive mechanism. This assembly comprises the housing and output shaft, which is to be directly attached to the existing mounts. It is connected to the electrical supply and mechanical connection, which allows constant movement throughout the prolonged production.

Dimensions:

  • Weight: 4.46 lbs
  • Length: 12.5 in
  • Height: 6 in
  • Width: 6 in

Step1: Disconnect power supply and lockout/tagout equipment before starting and verify power is isolated.

Step2: Remove access panel and note wiring connections.

Step3: Detach old motor and mount Motor securely.

Step4: Reconnect wiring per diagram, ensuring tight terminals secure connectors firmly.

Step5: Align drive components and adjust tension carefully.

Step6: Restore power and test rotation; verify smooth operation.

Step7: Ensure guards are reinstalled.

  • What maintenance is required for the Middleby Marshall 44695 Motor?

    Clean the motor exterior regularly to prevent dust and grease buildup that can affect cooling. Inspect wiring connections for tightness and signs of heat damage. Ensure proper ventilation around the motor during operation to avoid overheating.

  • What are common issues with the Middleby Marshall 44695 Motor?

    • Motor overheating due to poor ventilation or grease accumulation.
    • Bearing damage causing noise and vibration during operation.
    • Electrical connection failure leading to intermittent power loss.
    • Reduced performance or inconsistent motor speed under load.
