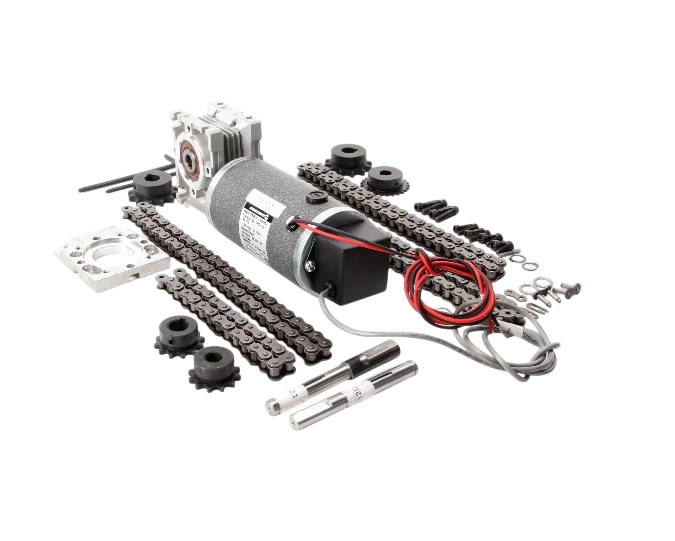

Middleby Marshall 66186 Oven Gear Motor Kit W/Shafts 1/2" & 5/8" 53W 12.6 RPM 90 VDC

SKU: 66186 1-66186 Brand:
Middleby Marshall
Availability:
In Stock
(0)
$1,112.14 Price reduced from $1,521.95
Save $409.81
Have a Question? +1 (866) 863-0907

Specifications:

  • Gear Motor Kit, New Style, 90Vdc~
  • 53 Watts~
  • 1.04 Amp,
  • Reducer Output 12.6 RPM. 1/2" & 5/8" Shaft.
  • "Groschopp" Model Pm8014-Ra3080T, P/N 934-60-3160-12.
  • Includes: Loctite, Gear Motor, (4) Roller Chains, 1/2"
  • Shaft, 5/8" Shaft, Gear Motor Brackets & Plates, (5)
  • Sprockets, (2) Master Links, Screws And Instructions.
  • Middleby Marshall
  • Oven Js350, Ps300, Ps310, Ps350, Ps360, Ps360Wb70.
  • Series: Ps570 Single & Split Belt (Sb) Models
  • Ps200, Ps200 Tandem, Ps200-R68, Ps200Vl, Ps220-R68, Ps220Fs,
  • Ps220Vl, Ps224, Ps224-R68, Ps224Vl, Ps310, Ps314, Ps360,
  • Ps360Ewb, Ps360Q, Ps360S, Ps360Wb, Ps360Wb70, Ps555E,
  • Ps555G, Ps570G, Ps570S

Description

The Middleby Marshall 66186 Oven Gear Motor Kit is a component-driven conveyor part for commercial systems. This 90 VDC assembly is rated at 53W and operates at 12.6 RPM which assists to move the conveyor within the appliance chamber for controlled cooking times and even product flow. The kit comes with both 1/2", and 5/8" shafts to fit certain conveyor drive arrangements. It is a part of the appliance internal drive equipment and is normally used in restaurants, kitchens, and food production facilities where conveyor appliance cook.

Dimensions:

  • Weight: 16.5 lbs
  • Length: 16.1 in
  • Height: 6.5 in
  • Width: 7.1 in

MIDDLEBY MARSHALL:

27384-0011 46603 46604 47796 47797 64221

Step1: Disconnect oven power supply and ensure unit is cool.

Step2: Remove access panel and note wiring connections.

Step3: Detach old gear motor and shafts carefully.

Step4: Align and mount new motor with shafts in correct orientation.

Step5: Reconnect wiring as per diagram and secure fasteners.

Step6: Test rotation, ensure smooth operation; keep hands clear of moving part.

Step7: Safety: Always isolate electrical supply before servicing to prevent shock or equipment damage.

  • What maintenance is required for the Middleby Marshall 66186 Gear Motor Kit?

    Inspect oven motor shafts and couplings regularly. Keep unit clean from grease and debris buildup. Ensure proper electrical connections and stable voltage supply. Lubricate moving components if specified by manufacturer guidelines and check alignment to prevent mechanical strain.

  • What are common issues with the Middleby Marshall 66186 Gear Motor Kit?

    • Shaft misalignment causing vibration.
    • Motor overheating under load.
    • Electrical failure from voltage fluctuation.
    • Gear damage causing noise.
    • Bearing damage leading to friction.
