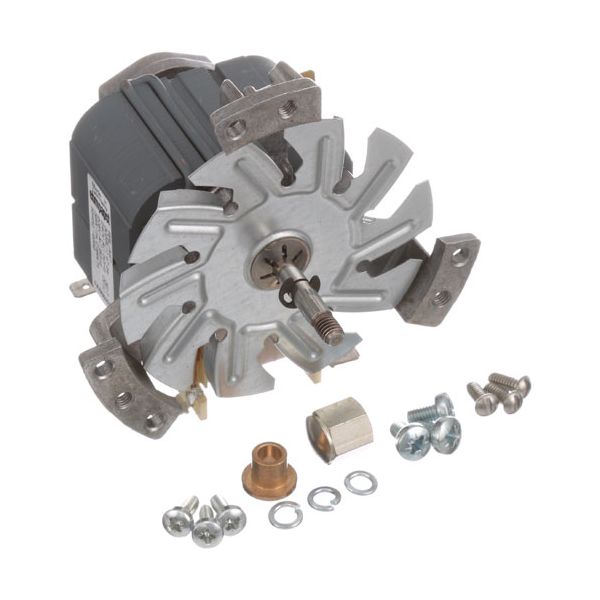

Moffat M242024K Oven Motor Kit W/Shaft & Hardwares 1-1/16" X 7/32" 50/60Hz

Rating:
5 5 20
20  Reviews Add Your Review
Special Price $314.05 Regular Price $530.85
In stock
SKU
M242024K
Add to Wish List
Electrical & Hardware, Motors & Pumps,
Manufacturer:
The Moffat M242024K Motor Kit functions as a premium replacement component that drives efficient operation within convection ovens. The motor operates at 240/208V with 50/60Hz frequency while using a 1-1/16" x 7/32" direct-mount shaft for dependable operation. The kit contains the necessary mounting hardware that makes installation process simple. This works with E22M3, E25, and E31D4 models and other Moffat products to support proper airflow that leads to uniform cooking outcomes. The robust material composition extends the oven lifecycle while its exact engineering minimizes operational noise as well as operational efficiency.

Dimensions

  • Weight: 3.45 lbs
https://partsfe.com/media/catalog/product/m/o/moffat-m242024k-oven-motor-kit-w-shaft-hardwares-1-1-16-x-7-32-50-60hz-28244.jpg
Driving the fan assembly within convection ovens, the Moffat M242024K Convection Oven Motor Kit 1-1/16" X 7/32" 208-240V 50/60Hz is an OEM motor component used to provide rotational movement for the oven's air-circulation system. The motor transfers electrical energy into mechanical rotation, allowing the connected fan assembly to move air throughout the oven cavity. Its kit configuration supports the designated motor arrangement within the convection oven.

Motor Rotation:
Electrical power supplied to the motor produces rotational movement at the motor shaft. This rotation drives the connected fan assembly, providing the mechanical motion required for continuous air movement within the oven during the convection cooking cycle.

Air Circulation Drive:
Driving the convection fan during oven operation, the motor supplies the rotational force needed to move air through the cooking chamber. This fan movement supports the circulation of heated air around the oven cavity as part of the convection cooking process.

Replacement Guidelines:
Replace the Moffat M242024K Convection Oven Motor Kit when the motor no longer provides the required rotational output or when the motor assembly shows physical damage. Select the replacement by matching the motor configuration, shaft arrangement, kit components, electrical requirements, and applicable Moffat convection oven model.

Common Failure Symptoms:

  • Convection fan does not rotate during operation.
  • Motor produces abnormal noise during fan operation.
  • Fan rotation becomes slow, uneven, or intermittent.
  • Motor shaft shows excessive movement or visible damage.
  • Motor assembly shows signs of overheating or physical deterioration.

Equipment Compatibility:
The Moffat M242024K Convection Oven Motor Kit 1-1/16" X 7/32" 208-240V 50/60Hz is an OEM component designed for compatible Moffat commercial convection ovens using the corresponding motor and fan arrangement. Verify the equipment model and motor configuration before selecting the component.

Technical Specifications:
Part Number: M242024K
Brand: Moffat
Component Name: Convection Oven Motor Kit
Shaft Dimension: 1-1/16" X 7/32"
Voltage: 208-240V
Frequency: 50/60Hz

Replaces Parts
Reviews 20
Write Your Own Review
You're reviewing:Moffat M242024K Oven Motor Kit W/Shaft & Hardwares 1-1/16" X 7/32" 50/60Hz
Your Rating
FAQS
Customer Questions
Can I use my oven without a functioning motor kit?

It depends on the specific function the motor kit serves. Some functions, such as fan circulation, might affect cooking performance if the motor kit is not functioning properly.

What maintenance is required for a Moffat Motor Kit?

Regular maintenance may include cleaning, lubrication, and checking for signs of wear. Refer to the product manual or Moffat's guidelines for specific maintenance instructions.

How do I determine if a Moffat Motor Kit is compatible with my oven model?

Check your oven's user manual or technical specifications to confirm compatibility with the Moffat Motor Kit. You can also consult Moffat's official resources or customer support for assistance.

What maintenance is required for the Moffat M242024K Motor Kit with shaft?

Inspect the motor and shaft regularly for wear, overheating, and loose hardware to ensure smooth operation. Clean dust and grease buildup to prevent strain and overheating. Check electrical connections and secure fittings to maintain safe performance and avoid mechanical failure.

What are the common issues with the Moffat M242024K Motor Kit with Shaft?

  • Motor failing to start or operate intermittently.
  • Shaft misalignment is causing uneven oven rotation.
  • Unusual noises or vibrations during operation.
  • Loose hardware leading to mechanical instability.

What is the primary role of the Moffat M242024K in a convection oven?

The Moffat M242024K provides the motor drive needed for the oven's internal air-moving assembly.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Disconnect oven power at the breaker.

Step2: Remove the rear service panel to access the motor assembly.

Step3: Disconnect electrical wiring and detach the fan blade.

Step4: Remove mounting bolts and extract the old motor.

Step5: Install the new motor with shaft and hardware, reconnect wiring, reattach fan blade, and restore power.
