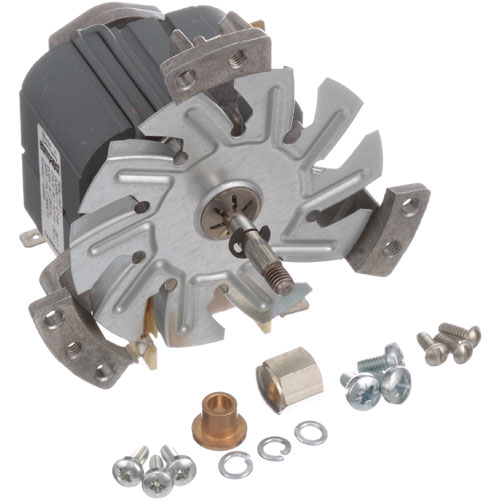

Moffat M242024K Oven Motor Kit W/Shaft & Hardwares 1-1/16" X 7/32" 50/60Hz

Motor Rotation:
Electrical power supplied to the motor produces rotational movement at the motor shaft. This rotation drives the connected fan assembly, providing the mechanical motion required for continuous air movement within the oven during the convection cooking cycle.

Air Circulation Drive:
Driving the convection fan during oven operation, the motor supplies the rotational force needed to move air through the cooking chamber. This fan movement supports the circulation of heated air around the oven cavity as part of the convection cooking process.

Replacement Guidelines:
Replace the Moffat M242024K Convection Oven Motor Kit when the motor no longer provides the required rotational output or when the motor assembly shows physical damage. Select the replacement by matching the motor configuration, shaft arrangement, kit components, electrical requirements, and applicable Moffat convection oven model.

Common Failure Symptoms:

• Convection fan does not rotate during operation.
• Motor produces abnormal noise during fan operation.
• Fan rotation becomes slow, uneven, or intermittent.
• Motor shaft shows excessive movement or visible damage.
• Motor assembly shows signs of overheating or physical deterioration.

Equipment Compatibility:
The Moffat M242024K Convection Oven Motor Kit 1-1/16" X 7/32" 208-240V 50/60Hz is an OEM component designed for compatible Moffat commercial convection ovens using the corresponding motor and fan arrangement. Verify the equipment model and motor configuration before selecting the component.

Technical Specifications:
Part Number: M242024K
Brand: Moffat
Component Name: Convection Oven Motor Kit
Shaft Dimension: 1-1/16" X 7/32"
Voltage: 208-240V
Frequency: 50/60Hz

Step1: Disconnect oven power at the breaker.

Step2: Remove the rear service panel to access the motor assembly.

Step3: Disconnect electrical wiring and detach the fan blade.

Step4: Remove mounting bolts and extract the old motor.

Step5: Install the new motor with shaft and hardware, reconnect wiring, reattach fan blade, and restore power.

• Can I use my oven without a functioning motor kit?

  It depends on the specific function the motor kit serves. Some functions, such as fan circulation, might affect cooking performance if the motor kit is not functioning properly.

• What maintenance is required for a Moffat Motor Kit?

  Regular maintenance may include cleaning, lubrication, and checking for signs of wear. Refer to the product manual or Moffat's guidelines for specific maintenance instructions.

• How do I determine if a Moffat Motor Kit is compatible with my oven model?

  Check your oven's user manual or technical specifications to confirm compatibility with the Moffat Motor Kit. You can also consult Moffat's official resources or customer support for assistance.

• What maintenance is required for the Moffat M242024K Motor Kit with shaft?

  Inspect the motor and shaft regularly for wear, overheating, and loose hardware to ensure smooth operation. Clean dust and grease buildup to prevent strain and overheating. Check electrical connections and secure fittings to maintain safe performance and avoid mechanical failure.

• What are the common issues with the Moffat M242024K Motor Kit with Shaft?

  • Motor failing to start or operate intermittently.
  • Shaft misalignment is causing uneven oven rotation.
  • Unusual noises or vibrations during operation.
  • Loose hardware leading to mechanical instability.

• What is the primary role of the Moffat M242024K in a convection oven?

  The Moffat M242024K provides the motor drive needed for the oven's internal air-moving assembly.

• What does the Moffat M242024K motor kit drive?

  The motor kit drives the fan or blower assembly responsible for moving air within the convection oven.

• Why is the Moffat M242024K supplied as a motor kit?

  The kit configuration groups the motor with its associated components for use as an assembly within the convection oven.

• How does the convection oven motor support the air-moving system?

  The motor supplies rotational movement to the air-moving assembly, allowing the convection system to circulate air during oven operation.

• Does the Moffat M242024K require maintenance or inspection?

  Maintenance or inspection may be relevant when the motor shows unusual operating noise, fails to rotate, or exhibits signs of mechanical wear.
