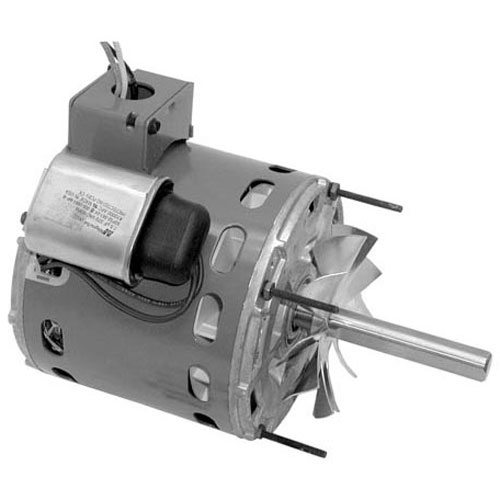

Garland 2485801 Oven Induction Motor 1/3 HP, CCW, 3-1/2" X 5/8" Shaft

SKU: 2485801 1-2485801 Brand:
Garland
Availability:
In Stock
(2)
$940.56 Price reduced from $1,280.95
Save $340.39
Have a Question? +1 (866) 863-0907

Specifications:

  • [ 115V, ] [ 1/3Hp ] [ 60 Hz ] [1Ph ] [1700 RPM ] [3.4Amp ]
  • [ Rotation Ccw][ 3-1/2" X 5/8" Shaft ] The Bolt Pattern
  • Should Be 3.65" Apart Which Measures 5.15" Across.
  • Garland Oven 43-40Rc (After 1990), M100Xrc, Stw28, Stw286.
  • Master Series With Rc/Rce Suffix
  • Series: H280/P280 After 11/90.
  • Series: H280/P280 After 11/90.
  • Us Range Oven Series:Px, Ps
  • Us Range Blower Wheel Mb-110, # 26-4052
  • Garland, See Model Info For Blower Wheels:
  • # 26-1464
  • # 26-1927
  • # 26-1926

Description

The Garland 2485801 Blower Motor is a 1/3 horsepower, 115-volt, 60Hz, motor used in air circulation of an oven. It has a 3-1/2" diameter, 5/8" shaft to enable it to be attached firmly. It is installed in the air system of the oven and it pushes the blower to ensure that there is a uniform flow of air and even heat distribution. This motor provides stable operation and high thermal performance when using the system normally.

Dimensions:

  • Weight: 13 lbs
  • Length: 9 in
  • Height: 7 in
  • Width: 7 in

This Part Fits the Following Models

179 models
Garland G24 Garland G24-15H Garland G24-15HFSD Garland G24-24G Garland G24-24GFSD Garland G24-24GTH Garland G24-24GTHX Garland G24-36G Garland G24-36GFSD Garland G24-36GTH Garland G24-36GTHX Garland G24-48G Garland G24-48GFSD Garland G24-48GTH Garland G24-48GTHX Garland G24-4L Garland G24-4S Garland G24-4T Garland G24-60G Garland G24-60GFSD Garland G24-60GTH Garland G24-60GTHX Garland G24-72G Garland G24-72GFSD Garland G24-72GTH Garland G24-72GTHX Garland G24-T Garland G286 Garland G36 Garland G36-6C Garland G36-6R Garland G36-6S Garland G36-6T Garland G36T Garland G48 Garland G48-8CS Garland G48-8LL Garland G48-8RS Garland G48-8SS Garland G48P Garland G48PA Garland G48PD Garland G48PS Garland G48PSA Garland G48PSD Garland G60 Garland G60-10CC Garland G60-10CR Garland G60-10CS Garland G60-10RR Garland G60-10RS Garland G60-10SS Garland G60-6R24CC Garland G60-6R24CR Garland G60-6R24CS Garland G60-6R24RR Garland G60-6R24RS Garland G60-6R24SS Garland H/P-280 Garland H280 Garland H283 Garland H284 Garland H285 Garland H286 Garland H287 Garland H288 Garland H289 Garland HP-280 SERIES Garland M100RC Garland M105RC Garland M42-6RC Garland M42RC Garland M43-1RC Garland M43-2RC Garland M43-3RC Garland M43RC Garland M44RC Garland M45RC Garland M46RC Garland M47-45RC Garland M47-51RC Garland M47-68RC Garland M47RC Garland M48-45RC Garland M48-51RC Garland M48-68RC Garland M48RC Garland M54RC Garland M60RC Garland MS42-6RC Garland MS42-6RCE Garland MS42RC Garland MS42RCE Garland MS43RC Garland MS43RCE Garland MS44RC Garland MS44RCE Garland MS54RC Garland MS54RCE Garland MSSRC Garland MST42RC Garland MST42RCE Garland MST43RC Garland MST43RCE Garland MST44RC Garland MST44RCE Garland MST45RC Garland MST45RCE Garland MST46RC Garland MST46RCE Garland MST47RC Garland MST47RCE Garland MST54RC Garland MST54RCE Garland ST284-RCE Garland ST286-RCE Garland STW286A Garland U24 Garland U24-2G12L Garland U24-2G12S Garland U24-4L Garland U24-4S Garland U24-G24L Garland U24-G24S Garland U36 Garland U36-2G24R Garland U36-2G24S Garland U36-4G12R Garland U36-4G12S Garland U36-6C Garland U36-6R Garland U36-6S Garland U36-G36R Garland U36-G36S Garland U48 Garland U48-2G36LL Garland U48-2G36RS Garland U48-2G36SS Garland U48-4G24LL Garland U48-4G24RS Garland U48-4G24SS Garland U48-6G12LL Garland U48-6G12RS Garland U48-6G12SS Garland U48-8CS Garland U48-8LL Garland U48-8RS Garland U48-8SS Garland U48-G48LL Garland U48-G48RS Garland U48-G48SS Garland U60 Garland U60-10CC Garland U60-10CR Garland U60-10CS Garland U60-10RR Garland U60-10RS Garland U60-10SS Garland U60-2G48RR Garland U60-2G48RS Garland U60-2G48SS Garland U60-4G36RR Garland U60-4G36RS Garland U60-4G36SS Garland U60-6G24RR Garland U60-6G24RS Garland U60-6G24SS Garland U60-6R24CC Garland U60-6R24CR Garland U60-6R24CS Garland U60-6R24RR Garland U60-6R24RS Garland U60-6R24SS Garland U60-8G12RR Garland U60-8G12RS Garland U60-8G12SS Garland U60-G60RR Garland U60-G60RS Garland U60-G60SS
Showing of 179.0

GARLAND:

1671200 2485801 (ALT) GL2485801 GL2485801 (ALT)

Step1: Turn off and unplug the oven unit.

Step2: Remove the rear panel to access the motor assembly.

Step3: Disconnect wiring and loosen mounting bolts.

Step4: Remove the old motor from its bracket.

Step5: Install the new motor and secure it firmly.

Step6: Reconnect wiring, reassemble, and test motor rotation.

  • What maintenance is required for the Garland 2485801 Induction Motor?

    Regularly inspect the motor for grease buildup, dust, or debris that may restrict airflow and cooling. Clean vents and surrounding areas to maintain efficiency. Check electrical connections for tightness and wear. Proper maintenance supports ensure consistent motor performance and safe oven operation.

  • What are common issues with the Garland 2485801 Induction Motor?

    • Motor overheating during use.
    • Failure to start or inconsistent operation.
    • Unusual grinding noises.
    • Weak airflow or reduced performance.
    • Shaft vibration or misalignment.

Customer Reviews

5 Based on 2 reviews
5 ★
2
4 ★
0
3 ★
0
2 ★
0
1 ★
0
2 reviews
  • Smooth Rotation
    Wireceaster —

    Replaced old motor, performance improved significantly now

  • Smooth Operation
    Truitestall —

    Sturdy motor, runs smoothly with ease
