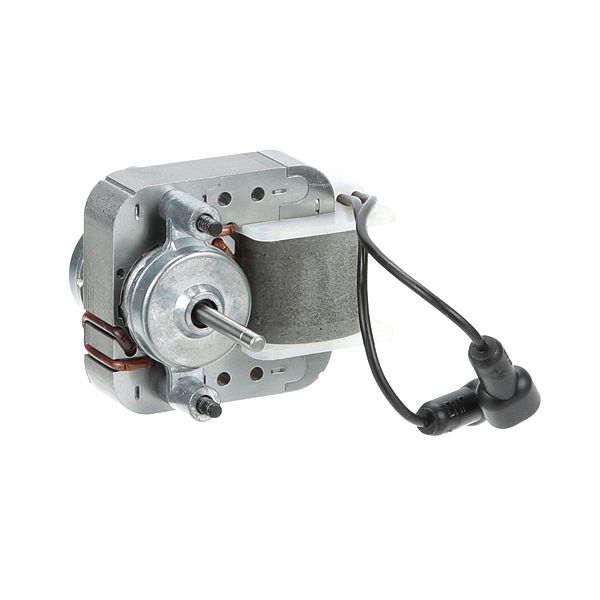

Nor-Lake 095503 Evaporator Fan Motor 3000 RPM 0.8 AMP 115V
Special Price $180.78 Regular Price $196.95
In stock
SKU
095503
Manufacturer:
The Nor-Lake 095503 Evaporator Fan Motor 0.8AMP is a refrigeration part designed for the use of the component in compatible refrigeration systems. Its main purpose is to ensure the air flow across the evaporator coil so that cooled air is evenly distributed throughout the refrigerated space. During cooling cycles, the motor is powered by a 115-volt power supply and spins at 3000 RPM, which allows it to spin the attached fan blade. It is installed within the evaporator housing, close to the coil assembly and is integrated with the refrigeration system. Ensuring uniform temperature distribution, effective heat absorption stable cooling operation and continuous air circulation is essential.
Dimensions
- Length: 5.5 In
- Width: 3.25 In
- Height: 3.25 In
- Weight: 1.364 lbs
Product Notes
- Length: 1-1/8" Shaft | 28 mm Shaft
- Voltage: 115 V Ac
- Amp: 0.8
- Revolutions Per Minute: 3000
- Outer Diameter: 3/16" Shaft | 5 mm Shaft
- Rotation: Clockwise From Shaft End
