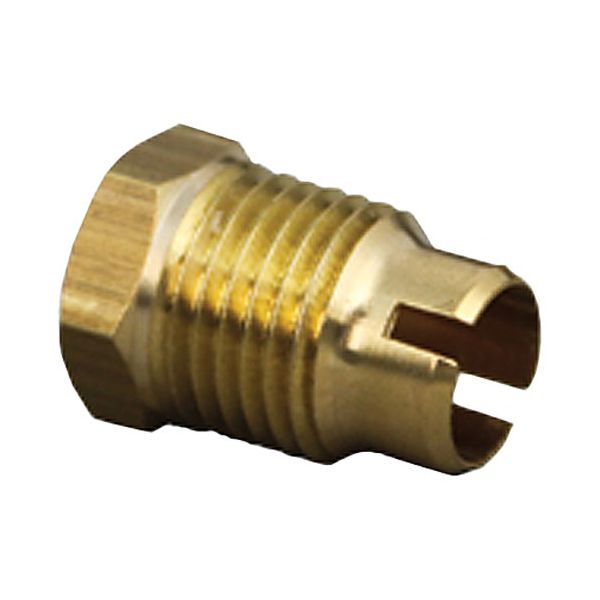

Garland 2200706 Gas Range Thermocouple Retaining Nut

Be the first to review this product
Special Price $8.86 Regular Price $11.08
In stock
SKU
2200706
Add to Wish List
Electrical & Hardware, Screws/Nuts/Bolts, Shop by manufacturers
Manufacturer:
The Garland 2200706 Gas Range Thermocouple Retaining Nut attaches to the assembly, which attaches the sensing element to the pilot flame. It is wound on the end and clamped against to ensure a firm connection, enabling it to pass temperature signals to the equipment. This retaining is installed between the control Valve and is at the point of intersection of the sensing probe and the gas supply system. It has a threaded shape that makes the sensing component in the burner assembly.

Dimensions

  • Length: 2.5 In
  • Width: 1.25 In
  • Height: 0.5 In
  • Weight: 0.02 lbs
https://partsfe.com/media/catalog/product/g/a/garland-2200706-pilot-bracket-brass-thermo-retaining-nut-16578-2.jpg

Product Notes

  • Pilot Bracket Nut, Brass, Thermo Retaining Nut.
  • Garland G24-15Hfsd, G24-24Gfsd, G24-36Gfsd, G24-48Gfsd,
  • G24-60Gfsd, G24-72Gfsd, Gd-152Hff, Gd-303Hff, Gd-304-Hff,
  • M46R, M46Rc, M46S, M46T, M6S, M6T, Ms42-6R, Ms42-6Rc,
  • Ms42-6Rce, Ms42-6Re, Ms42-6S, Ms42-6Se, Ms42-6T, Ms42-6Te,
  • Ms42R, Ms42Rce, Ms42Re, Ms42Se, Ms42Te, Ms54R, Ms54Rc,
  • Ms54Rce, Ms54Re, Ms54S, Ms54Se, Ms54T, Ms54Te, Mst42-6R,
  • Mst42-6Rc, Mst42-6Rce, Mst42-6Re, Mst42-6S, Mst42-6Se,
  • Mst42-6T, Mst42-6Te, Mst42R, Mst42Rc, Mst42Rce, Mst42Re,
  • Mst42S, Mst42Se, Mst42T, Mst42Te, Mst43R, Mst43Rc, Mst43Rce,
  • Mst43Re, Mst43S, Mst43Se, Mst43T, Mst43Te, Mst44R, Mst44Rc,
  • Mst44Rce, Mst44Re, Mst44S, Mst44Se, Mst44T, Mst44Te, Mst45R,
  • Mst45Rc, Mst45Rce, Mst45Re, Mst45S, Mst45Se, Mst45T,
  • Mst45Te, Mst47-51R, Mst47-51Rc, Mst47-51Rce, Mst47-51Re,
  • Mst47-51S, Mst47-51Se, Mst47-51T, Mst47-51Te, Mst47-68Rce,
Reviews
Write Your Own Review
You're reviewing:Garland 2200706 Gas Range Thermocouple Retaining Nut
Your Rating
FAQS
Customer Questions
What maintenance is required for the Garland 2200706 Thermocouple Retaining Nut?

Inspect and ensure nut is tight and free of corrosion. Clean grease and carbon buildup to maintain stable burner operation. Ensure proper alignment of pilot bracket and thermocouple retention for safe ignition.

What are common issues with the Garland 2200706 Thermocouple Retaining Nut?

  • Loose retaining nut causing unstable pilot assembly.
  • Corrosion or rust affecting brass threading.
  • Misalignment of pilot bracket leading to ignition failure.
  • Thread stripping or wear on mounting points.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas and allow appliance to cool completely to avoid burns or leaks.

Step2: Remove old bracket and clean mounting area of debris.

Step3: Position new brass thermo retaining nut onto pilot bracket and align correctly.

Step4: Secure tightly using proper tool, ensuring no gas line strain.

Step5: Restore gas supply and test pilot ignition for stable flame operation.
