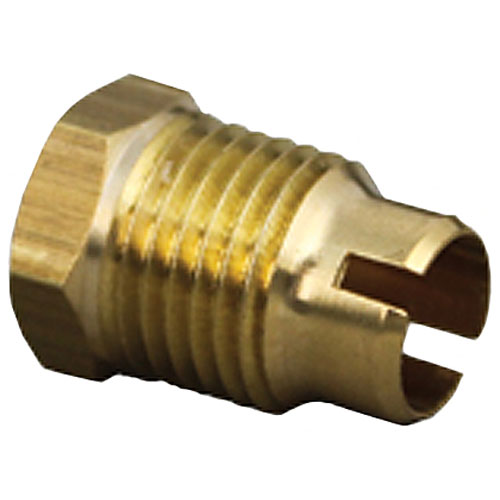

Garland 2200706 Gas Range Thermocouple Retaining Nut

SKU: 2200706 1-2200706 Brand:
Garland
Availability:
In Stock
(0)
$8.86 Price reduced from $11.08
Save $2.22
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Bracket Nut, Brass, Thermo Retaining Nut.
  • Garland G24-15Hfsd, G24-24Gfsd, G24-36Gfsd, G24-48Gfsd,
  • G24-60Gfsd, G24-72Gfsd, Gd-152Hff, Gd-303Hff, Gd-304-Hff,
  • M46R, M46Rc, M46S, M46T, M6S, M6T, Ms42-6R, Ms42-6Rc,
  • Ms42-6Rce, Ms42-6Re, Ms42-6S, Ms42-6Se, Ms42-6T, Ms42-6Te,
  • Ms42R, Ms42Rce, Ms42Re, Ms42Se, Ms42Te, Ms54R, Ms54Rc,
  • Ms54Rce, Ms54Re, Ms54S, Ms54Se, Ms54T, Ms54Te, Mst42-6R,
  • Mst42-6Rc, Mst42-6Rce, Mst42-6Re, Mst42-6S, Mst42-6Se,
  • Mst42-6T, Mst42-6Te, Mst42R, Mst42Rc, Mst42Rce, Mst42Re,
  • Mst42S, Mst42Se, Mst42T, Mst42Te, Mst43R, Mst43Rc, Mst43Rce,
  • Mst43Re, Mst43S, Mst43Se, Mst43T, Mst43Te, Mst44R, Mst44Rc,
  • Mst44Rce, Mst44Re, Mst44S, Mst44Se, Mst44T, Mst44Te, Mst45R,
  • Mst45Rc, Mst45Rce, Mst45Re, Mst45S, Mst45Se, Mst45T,
  • Mst45Te, Mst47-51R, Mst47-51Rc, Mst47-51Rce, Mst47-51Re,
  • Mst47-51S, Mst47-51Se, Mst47-51T, Mst47-51Te, Mst47-68Rce,

Description

The Garland 2200706 Gas Range Thermocouple Retaining Nut attaches to the assembly, which attaches the sensing element to the pilot flame. It is wound on the end and clamped against to ensure a firm connection, enabling it to pass temperature signals to the equipment. This retaining is installed between the control Valve and is at the point of intersection of the sensing probe and the gas supply system. It has a threaded shape that makes the sensing component in the burner assembly.

Dimensions:

  • Weight: 0.02 lbs
  • Length: 2.5 in
  • Height: 0.5 in
  • Width: 1.25 in

GARLAND:

GL2200706

Step1: Turn off gas and allow appliance to cool completely to avoid burns or leaks.

Step2: Remove old bracket and clean mounting area of debris.

Step3: Position new brass thermo retaining nut onto pilot bracket and align correctly.

Step4: Secure tightly using proper tool, ensuring no gas line strain.

Step5: Restore gas supply and test pilot ignition for stable flame operation.

  • What maintenance is required for the Garland 2200706 Thermocouple Retaining Nut?

    Inspect and ensure nut is tight and free of corrosion. Clean grease and carbon buildup to maintain stable burner operation. Ensure proper alignment of pilot bracket and thermocouple retention for safe ignition.

  • What are common issues with the Garland 2200706 Thermocouple Retaining Nut?

    • Loose retaining nut causing unstable pilot assembly.
    • Corrosion or rust affecting brass threading.
    • Misalignment of pilot bracket leading to ignition failure.
    • Thread stripping or wear on mounting points.
