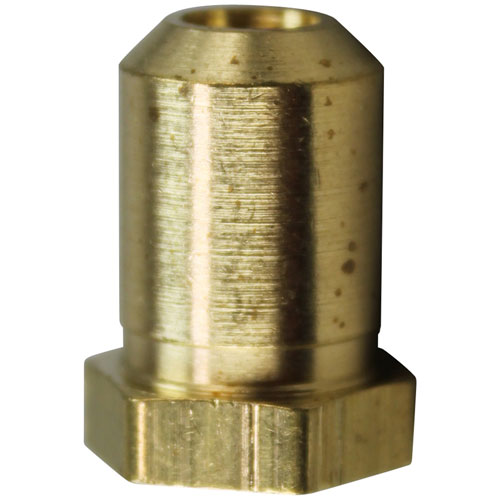

Southbend 1008751 Range Orifice Hood #51 Drill

SKU: 1008751 1-1008751 Brand:
Southbend
Availability:
In Stock
(0)
$18.24
Have a Question? +1 (866) 863-0907

Specifications:

  • Hood Orifice 3/8"-27 W/ #51 Hole
  • Star Fryer 216

Description

The Southbend 1008751 Range Orifice Hood is a gas metering component of the type and #51 of a drill size which is used in corresponding commercial ranges. It regulates the flow of fuel to the burner to attain proper combustion properties and stable levels of heat. The orifice is placed in the gas pathway of the appliance and in combination with the valve and burner assembly, to aid in the controlled operation. It is used in commercial kitchens to ensure uniform performance in cooking, where it ensures proper delivery of gas.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

ATOSA:

301040009

DYNAMIC COOKING SYSTEMS:

13005-51

GARLAND:

1020851 223242-51 M8-51

GLASS MAID:

8-51

HOBART:

00-418051-00051 00-719951-00051 19951-51 418051-00051 418051-51 719951-00051 719951-51

LOLO COMMERCIAL FOODSERVICE EQUIPMENT:

159586

STAR MFG:

7757 E2-7757

VULCAN HART:

00-418051-00051 00-719951-00051 19951-51 418051-00051 418051-51 719951-00051 719951-51

Step1: Turn off gas supply and power at main valve.

Step2: Allow appliance to cool completely before handling any parts.

Step3: Carefully remove burner assembly from unit housing.

Step4: Unscrew old orifice counterclockwise using correct tool.

Step5: Install new orifice securely and tighten properly.

Step6: Reassemble burner and check alignment ensuring proper fit.

Step7: Test for leaks and flame stability using soapy water solution carefully.

  • What maintenance is required for the Southbend 1008751 Orifice?

    Inspect the orifice regularly for clogging, grease buildup, or wear. Clean with proper non-abrasive tools and ensure proper gas flow. Routine maintenance ensures efficient combustion and consistent heating. Always shut off gas supply before servicing for safety.

  • What are common issues with the Southbend 1008751 Orifice?

    • Uneven flame distribution leading to inconsistent heating.
    • Gas flow restriction or partial blockage affecting performance.
    • Orifice wear or damage resulting in leakage or poor combustion.
    • Incorrect sizing issues.
