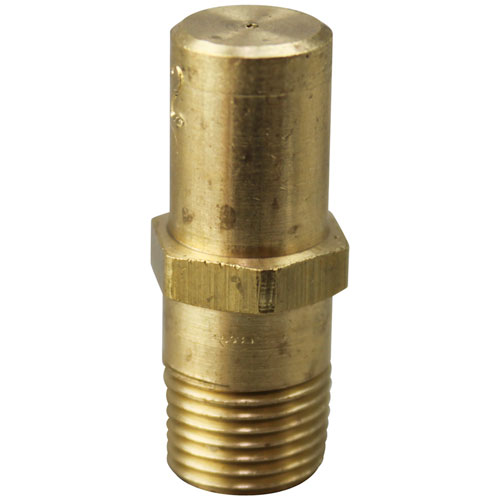

Garland 1265556 Convection Oven Orifice Fitting Propane Gas

SKU: 1265556 1-1265556 Brand:
Garland
Availability:
In Stock
(0)
$16.27 Price reduced from $21.12
Save $4.85
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Burner Orificr, 1/8" Mpt X #72, 1-1/8" Long
  • This Is A #72 And Must Be Drilled To The Size Needed.
  • Garland Lp Orifice,
  • For Lp Drill To #56. Use Drill # 72-1064
  • For Nat Drill To #48. Use Drill # 72-1056
  • 1/8"Mpt X 1-1/8" Long
  • Garland Tg3, Tg4, Fco, Ico
  • Note: Some Ovens Require #48 Or #52 For Nat

Description

The Garland 1265556 Convection Oven Orifice Fitting Propane Gas is used to regulate the flow of propane to the burner, by passing the fuel through an opening of a certain size, so that the ignition and flame performance. It operates by allowing a controlled amount of gas to pass to the burner, which assists it in sustaining constant combustion during the working process. This fitting is attached directly at the opening of the burner and it connects the propane supply to the burner assembly. Its design is proper to both pressure and flow requirements of propane and consequently.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 1.25 in
  • Height: 1.25 in
  • Width: 0.5 in

Step1: Turn off gas supply and disconnect power; allow appliance to cool completely before starting.

Step2: Remove burner assembly and access existing orifice fitting carefully using correct tool.

Step3: Unscrew old fitting and inspect threads for damage or debris.

Step4: Install new orifice fitting, tightening securely without over-torquing.

Step5: Reassemble burner and restore gas, checking for leaks with solution before operation.

  • What maintenance is required for the Garland 1265556 Orifice Fitting?

    Regularly inspect the fitting for blockages, damage, or corrosion and clean it using appropriate non-abrasive tools. Maintenance ensures consistent gas flow and efficient burner performance. Always shut off gas supply before servicing to ensure safety.

  • What are common issues with the Garland 1265556 Orifice Fitting?

    • Clogging in the orifice restricting gas flow and causing inconsistent burner flame.
    • Incorrect sizing or installation leading to uneven heating and poor combustion performance.
    • Gas leakage from loose or damaged fittings affecting safety and efficiency.
    • Corrosion reduces efficiency.
