main product photo

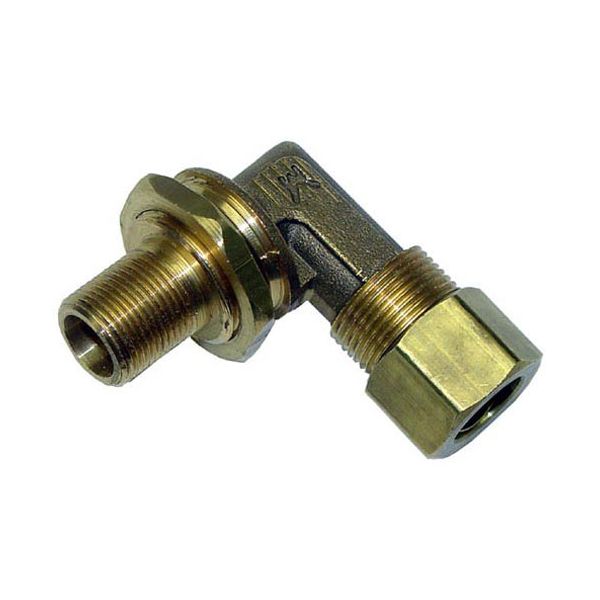

Garland 14155XX Oven Orifice Fitting W/O Hood

Rating:
5 5 1
1  Review Add Your Review
Special Price $15.40 Regular Price $20.00
In stock
SKU
14155XX
Add to Wish List
Griddle & Grill Parts, Gas Grill Orifices,
Manufacturer:
The Garland 14155XX Oven Orifice controls the flow of gas, by forcing fuel through a hole of known size into the burner. It operates by regulating the amount of gas that passes to the burner to aid in the proper mixing of air and fuel. The orifice fitting is screwed in the gas inlet of compatible range burners and is threaded into the manifold. This auxiliary component is incorporated into the delivery system of the gas, which ensures the regulated flow of fuel to maintain the burner in a stable condition.

Dimensions

  • Length: 2 In
  • Width: 1 In
  • Height: 1.5 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/g/a/garland-14155xx-orifice-fitting-70500-2.jpg

Product Notes

  • Orifice Fitting, 7/16" Cct X No Orifice Add Orifice #35 For
  • Nat, Or #51 For Lp, 90 Deg, Comes With Lock Nut,
  • Garland G280
GARLAND:
Reviews 1
Write Your Own Review
You're reviewing:Garland 14155XX Oven Orifice Fitting W/O Hood
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Garland 14155XX Orifice Fitting?

Inspect the orifice fitting regularly for clogs, corrosion, or wear to ensure proper gas flow. Clean using non-abrasive tools and ensure tight connections to prevent leaks. regular checks can maintain better and efficient operation.

What are common issues with the Garland 14155XX Orifice Fitting?

  • Clogging due to carbon buildup restricting gas flow.
  • Gas flow inconsistency leading to uneven burner flame.
  • Corrosion or wear on metal orifice components.
  • Leakage at connection points causing pressure drops.
  • Improper burner performance with weak or unstable ignition.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply, disconnect power, allow appliance to fully cool.

Step2: Remove the access panel to reach the existing orifice fitting assembly.

Step3: Disconnect the gas line and carefully remove the old orifice fitting.

Step4: Apply the gas-thread sealant to the new fitting threads if required.

Step5: Install the new orifice fitting and tighten connections securely without overtightening.

Step6: Restore the gas supply and check all fittings for leaks using a soap solution.
