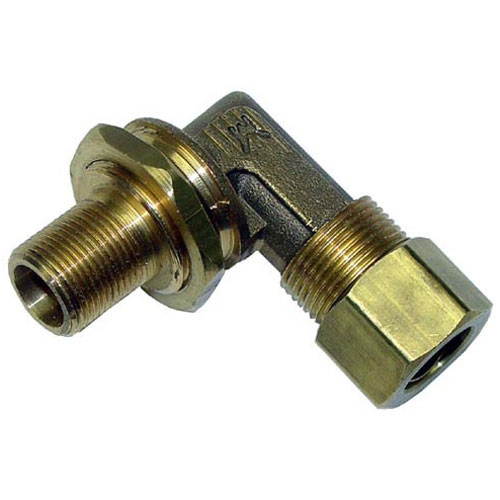

Garland 14155XX Oven Orifice Fitting W/O Hood

SKU: 14155XX 1-14155XX Brand:
Garland
Availability:
In Stock
(1)
$15.40 Price reduced from $20.00
Save $4.60
Have a Question? +1 (866) 863-0907

Specifications:

  • Orifice Fitting, 7/16" Cct X No Orifice Add Orifice #35 For
  • Nat, Or #51 For Lp, 90 Deg, Comes With Lock Nut,
  • Garland G280

Description

The Garland 14155XX Oven Orifice controls the flow of gas, by forcing fuel through a hole of known size into the burner. It operates by regulating the amount of gas that passes to the burner to aid in the proper mixing of air and fuel. The orifice fitting is screwed in the gas inlet of compatible range burners and is threaded into the manifold. This auxiliary component is incorporated into the delivery system of the gas, which ensures the regulated flow of fuel to maintain the burner in a stable condition.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 1.5 in
  • Width: 1 in

GARLAND:

1088286

Step1: Turn off gas supply, disconnect power, allow appliance to fully cool.

Step2: Remove the access panel to reach the existing orifice fitting assembly.

Step3: Disconnect the gas line and carefully remove the old orifice fitting.

Step4: Apply the gas-thread sealant to the new fitting threads if required.

Step5: Install the new orifice fitting and tighten connections securely without overtightening.

Step6: Restore the gas supply and check all fittings for leaks using a soap solution.

  • What maintenance is required for the Garland 14155XX Orifice Fitting?

    Inspect the orifice fitting regularly for clogs, corrosion, or wear to ensure proper gas flow. Clean using non-abrasive tools and ensure tight connections to prevent leaks. regular checks can maintain better and efficient operation.

  • What are common issues with the Garland 14155XX Orifice Fitting?

    • Clogging due to carbon buildup restricting gas flow.
    • Gas flow inconsistency leading to uneven burner flame.
    • Corrosion or wear on metal orifice components.
    • Leakage at connection points causing pressure drops.
    • Improper burner performance with weak or unstable ignition.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Accurate
    Ahlfred —

    High-quality fitting, great overall functionality
