Genuine OEM Part
main product photo

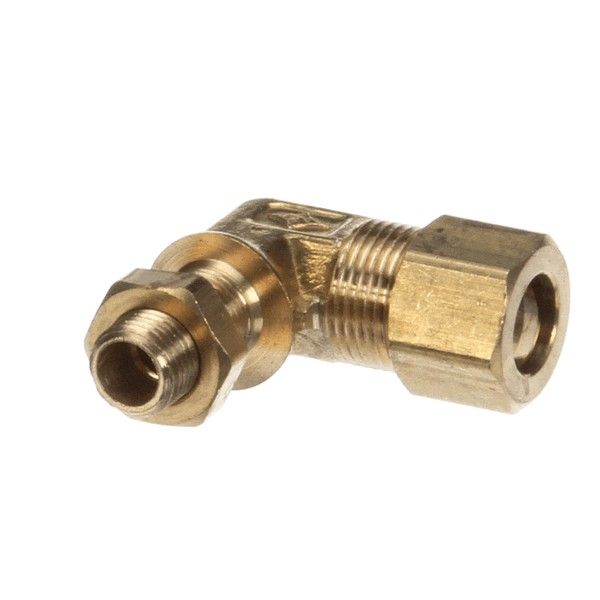

Star Mfg 2A-9369 Range Orifice Fitting

Be the first to review this product
Special Price $27.20 Regular Price $34.95
Out of stock
SKU
2A-9369
Add to Wish List
Griddle & Grill Parts, Gas Grill Orifices,
Manufacturer:
The Star Mfg 2A-9369 Range Orifice Fitting is an essential element of the gas and liquid flow systems with the ability to measure the flow of the fluids properly. It ensures that by creating a controlled restriction the velocity of fluid is raised while the pressure is lowered then in accordance with Bernoulli’s principle it can calculate the flow. This fitting is essential in kitchens where temperatures need to be regulated to get a desired end result in the food being cooked. Advantages include improved performance reliability, ability to interface with other systems .

Dimensions

  • Length: 0.75 In
  • Width: 1.375 In
  • Height: 1.5 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/s/t/star-mfg-2a-9369-range-orifice-fitting-31243-2.jpg

Product Notes

  • Orifice Fitting, 3/8" Cct X 3/8"-27, No Shoulder, 90 Deg,
  • With Locknut,
  • Star Griddle 824, 836, 848, 860, 872, (M/T/Ts/Tschs)
STAR MFG:
Reviews
Write Your Own Review
You're reviewing:Star Mfg 2A-9369 Range Orifice Fitting
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Star Mfg 2A-9369 Orifice Fitting?

Inspect the range orifice fitting regularly for grease buildup, clogging, or corrosion that can affect gas flow. Clean carefully using proper tools to avoid enlarging the orifice. Ensure tight, leak-free connections and check alignment during regular service.

What are common issues with the Star Mfg 2A-9369 Orifice Fitting?

  • Clogging from food debris or carbon buildup restricting gas flow.
  • uneven flame or weak burner performance.
  • Corrosion affecting metal integrity over time.
  • Gas leakage at threaded connections.
  • Inconsistent ignition or delayed burner start.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and allow appliance to cool completely before service.

Step2: Remove burner assembly access panel carefully.

Step3: Unscrew and remove existing orifice fitting using proper tools.

Step4: Inspect threads and clean gas port to ensure proper seal.

Step5: Install new orifice fitting and tighten securely without over-torquing.

Step6: Reassemble burner components and ensure alignment.

Step7: Restore gas supply, check all connections, and test for leaks using soapy water solution.
