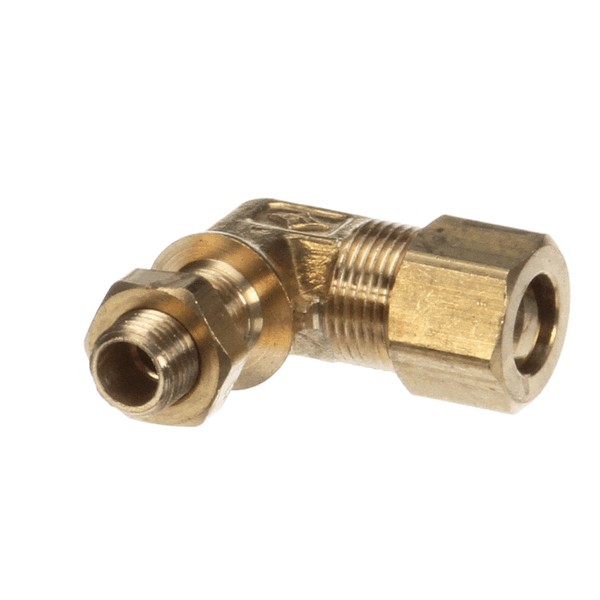

Star Mfg 2A-9369 Range Orifice Fitting

SKU: 2A-9369 1-2A-9369 Brand:
Star Mfg
Availability:
In Stock
(0)
$27.20 Price reduced from $34.95
Save $7.75
Have a Question? +1 (866) 863-0907

Specifications:

  • Orifice Fitting, 3/8" Cct X 3/8"-27, No Shoulder, 90 Deg,
  • With Locknut,
  • Star Griddle 824, 836, 848, 860, 872, (M/T/Ts/Tschs)

Description

The Star Mfg 2A-9369 Range Orifice Fitting is an essential element of the gas and liquid flow systems with the ability to measure the flow of the fluids properly. It ensures that by creating a controlled restriction the velocity of fluid is raised while the pressure is lowered then in accordance with Bernoulli’s principle it can calculate the flow. This fitting is essential in kitchens where temperatures need to be regulated to get a desired end result in the food being cooked. Advantages include improved performance reliability, ability to interface with other systems .

Dimensions:

  • Weight: 0.1 lbs
  • Length: 0.75 in
  • Height: 1.5 in
  • Width: 1.38 in

STAR MFG:

2A9369

Step1: Turn off gas supply and allow appliance to cool completely before service.

Step2: Remove burner assembly access panel carefully.

Step3: Unscrew and remove existing orifice fitting using proper tools.

Step4: Inspect threads and clean gas port to ensure proper seal.

Step5: Install new orifice fitting and tighten securely without over-torquing.

Step6: Reassemble burner components and ensure alignment.

Step7: Restore gas supply, check all connections, and test for leaks using soapy water solution.

  • What maintenance is required for the Star Mfg 2A-9369 Orifice Fitting?

    Inspect the range orifice fitting regularly for grease buildup, clogging, or corrosion that can affect gas flow. Clean carefully using proper tools to avoid enlarging the orifice. Ensure tight, leak-free connections and check alignment during regular service.

  • What are common issues with the Star Mfg 2A-9369 Orifice Fitting?

    • Clogging from food debris or carbon buildup restricting gas flow.
    • uneven flame or weak burner performance.
    • Corrosion affecting metal integrity over time.
    • Gas leakage at threaded connections.
    • Inconsistent ignition or delayed burner start.
