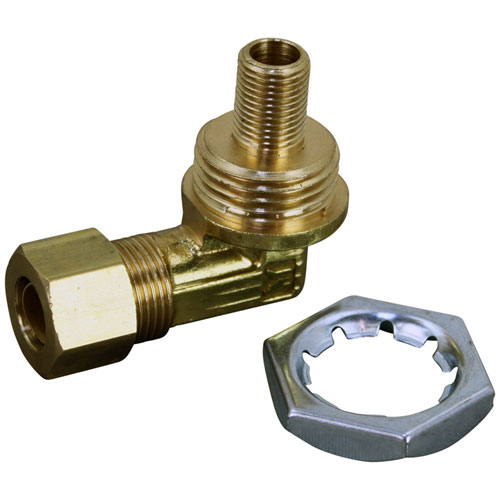

Jade Range 1815700000 Range Orifice Elbow 3/8" CCT X 3/8"-27

SKU: 1815700000 1-1815700000 Brand:
Jade Range
Availability:
In Stock
(0)
$43.82 Price reduced from $52.95
Save $9.13
Have a Question? +1 (866) 863-0907

Specifications:

  • Orifice Holder, 3/8" Cct X 3/8"-27 Thread
  • For Lp Brass Hood Orifice Use
  • 3/8"-27 X 1/2" High X #72, (Lp)# 26-1080
  • Can Be Drilled Out For Other Size.
  • Suggest #56 # 26-1780 Or #53 # 26-1113 For Natural Gas.
  • Comstock Castle
  • Imperial Broiler Icma-24, Icma-36, Icma-48, Icma-60,
  • Icma-72, Isb-24
  • Us Range Broiler, Oven 836 Cuisine
  • Fryer Rcf- 2424, 2448
  • Us Range Grill Tb-24Gg, Rgta

Description

The Jade Range 1815700000 Orifice Elbow is a gas line fitting with a compression connection of 3/8" and a threaded outlet of 3/8-27, which is used in compatible commercial ranges. This elbow turns the flow of the gas and provides a point of mounting a burner orifice where there is limited space. It is fitted in the gas train or burner and in alignment with the burner port. Being a part of the gas delivery system, and to maintain the proper fuel routing and the stable combustion performance.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3.25 in
  • Height: 1.5 in
  • Width: 2.5 in

GARLAND:

223000 223000-1 F803-0028

HOBART:

00-404079-00003 404079-00003 404079-3

IMPERIAL:

37188

ROYAL RANGE:

1508

VULCAN HART:

00-404079-00003 404079-00003 404079-3

Step1: Turn off gas and electrical power supply before installation.

Step2: Remove appliance access panel carefully.

Step3: Unscrew old orifice holder from burner assembly.

Step4: Inspect threads and clean mating seat surfaces.

Step5: Install new holder, align thread properly and hand-tighten.

Step6: Tighten securely, do not overtighten connections or fittings.

Step7: Perform leak test with soapy water before use.

  • What maintenance is required for the Jade Range 1815700000 Orifice Holder?

    Clean the orifice holder regularly to prevent grease and carbon buildup that can affect gas flow. Inspect threads and surfaces for wear or corrosion. Ensure proper alignment during reinstallation to maintain better burner performance. Use proper cleaning tools to avoid damaging accurate openings.

  • What are common issues with the Jade Range 1815700000 Orifice Holder?

    • Clogged orifice reducing gas flow and weak flame output.
    • Thread damage causing improper fitting or gas leakage.
    • Carbon buildup leading to uneven burner performance.
    • Misalignment affecting ignition consistency and heat distribution.
