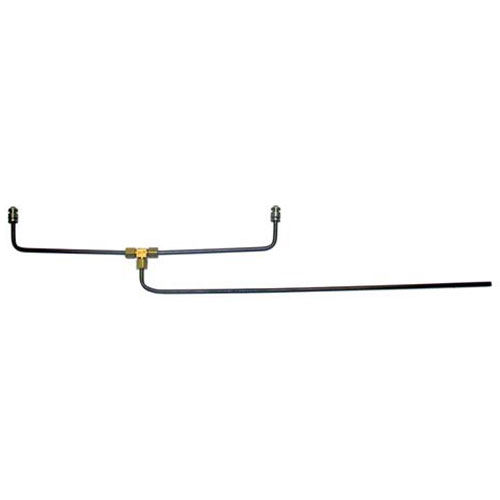

Imperial 20001 Pilot Burner/Tube Kit 3/16" 12-15/16" CTR 12-1/2" X 2-1/2" L

SKU: 20001 1-20001 Brand: Availability:
Out of Stock
(0)

$253.01 Price reduced from $272.64
Save $19.63


Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Assembly, 3/16" Tubing, 12-15/16" Ctr Of Tips,
  • 12-1/2" X 2-1/2" L Tube Connected To 2 Tip Tubes,
  • 2Ea 6-1/4" X 1-3/8" With Tips Make Up The 12-15/16" Above
  • With 3/16" Tee, Also Has Nut & Sleeve.
  • Imperial Range Ir, Elite
  • For Ir2000 Series Use A3922, # 51-1070, Assy.
  • Which Is 6" Tip Centers.

Description

The Imperial 20001 Pilot Burner/Tube Kit is a replacement assembly designed for use in commercial cooking equipment, and heating systems that require a standing flame. It includes a 3/16-inch tube with a 12-15/16-inch centre-to-centre configuration to support proper gas flow and ignition performance within the appliance. It is commonly installed in restaurant ovens, ranges, fryers and similar gas-powered equipment where the unit maintains readiness for operation. The assembly is used as part of the ignition and flame control system allowing it to ensure consistent lighting and stable operation during routine use.

Dimensions:

  • Weight: 0.3 lbs
  • Length: 0.5 in
  • Height: 12.75 in
  • Width: 2 in

Provides the pilot flame required to initiate burner ignition in gas cooking equipment. The Imperial 20001 Pilot Assembly delivers a controlled pilot flame through the designated 3/16" tubing arrangement, positioning the pilot tips at the specified 12-15/16" center-to-center spacing relative to the burner ignition points. The assembly functions as part of the gas ignition system to establish the flame source required for burner startup.

Equipment Compatibility:
Designed for use with compatible Imperial gas cooking equipment requiring this pilot assembly configuration for burner ignition.

Product Specifications:
SKU: 20001
Manufacturer: Imperial
Product Type: Pilot Assembly
Tubing Size: 3/16"
Center of Tips: 12-15/16"
Dimensions: 12-1/2" x 2-1/2" L

Key Features:

  • Provides a controlled pilot flame for burner ignition.
  • Routes pilot gas through the specified 3/16" tubing.
  • Maintains the specified 12-15/16" center-to-center tip spacing.
  • Positions the pilot tips relative to the designated burner ignition points.
  • TemporaryFeedback:
  • The pilot assembly was affecting burner ignition, and replacing it helped restore consistent pilot flame operation and burner startup.
