Genuine OEM Part
main product photo

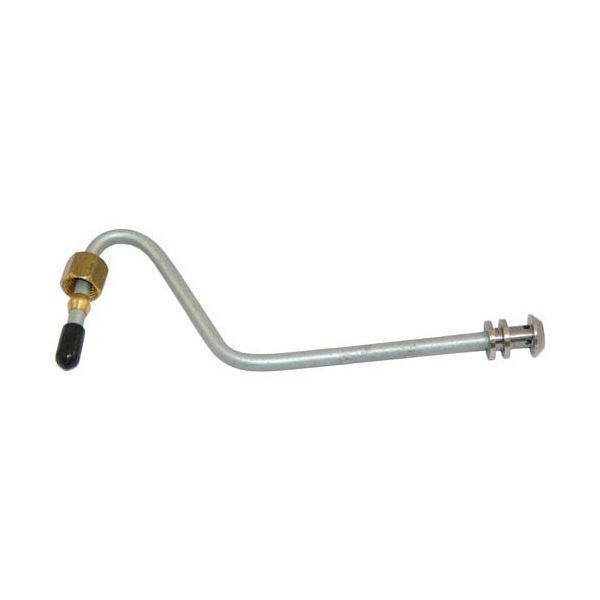

Vulcan Hart 00-706771-0000A Pilot Assembly W/Nut & Sleeve 5-1/4"L X 2"W 3/16" Tubing

Be the first to review this product
$38.39
In stock
SKU
00-706771-0000A
Add to Wish List
Griddle & Grill Parts, Pilot Assembly,
Manufacturer:
The Vulcan Hart 00-706771-0000A Pilot Assembly W/Nut & Sleeve controls the flow of gas to the burner to ignite it with a 3/16" tubing connection. It is 5-1/4" by 2" long and wide with a nut and sleeve to install. The assembly is placed in the burner system of the appliance, where the pilot flame is placed to ignite the main burner. Its design allows the contact of the spark with the gas to be consistent, which allows the burner to be lit.

Dimensions

  • Length: 5 In
  • Width: 2 In
  • Height: 5 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-00-706771-0000a-pilot-assembly-w-nut-sleeve-5-1-4-long-x-2-width-3-16-tubing-86226-2.jpg

Product Notes

  • Pilot Assembly, 5-1/4" Long X 2" Overall Width,
  • 3/16" Tubing W/ Nut & Sleeve.
  • Wolf Broiler Scb
  • Range Ch, Chss, R
  • Range/Grill F, Fs
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart 00-706771-0000A Pilot Assembly W/Nut & Sleeve 5-1/4"L X 2"W 3/16" Tubing
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Vulcan Hart 00-706771-0000A Pilot Assembly?

Inspect the pilot assembly regularly for carbon buildup, clogging, or loose fittings. Clean the orifice and tubing gently to maintain steady gas flow and accurate ignition. Ensure the nut and sleeve are tight to prevent gas leaks and maintain safe operation.

What are common issues with the Vulcan Hart 00-706771-0000A Pilot Assembly?

  • Pilot flame not igniting due to clogged orifice or debris buildup.
  • Weak or unstable flame caused by restricted gas flow.
  • Gas leakage from loose nut or sleeve connections.
  • Misalignment of tubing leading to inconsistent burner performance.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and allow equipment to cool completely before starting.

Step2: Remove existing pilot assembly, noting tubing connections and mounting position carefully.

Step3: Install new pilot assembly using nut and sleeve, ensuring tight, leak-free fittings.

Step4: Reconnect gas line, check alignment, then test for leaks with solution.

Step5: Relight pilot following manufacturer instructions and verify stable flame operation.
