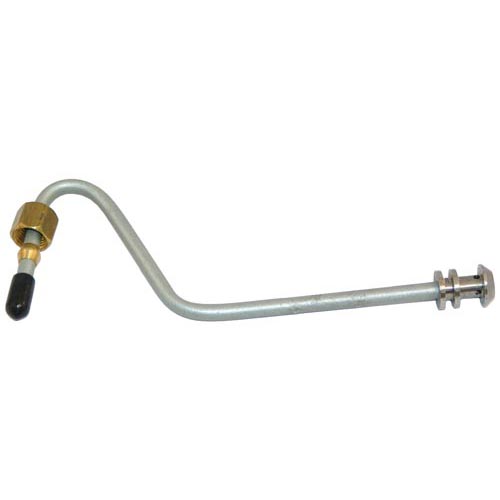

Vulcan Hart 00-706771-0000A Pilot Assembly W/Nut & Sleeve 5-1/4"L X 2"W 3/16" Tubing

SKU: 00-706771-0000A 1-00-706771-0000A Brand:
Vulcan Hart
Availability:
In Stock
(0)
$38.39
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot Assembly, 5-1/4" Long X 2" Overall Width,
  • 3/16" Tubing W/ Nut & Sleeve.
  • Wolf Broiler Scb
  • Range Ch, Chss, R
  • Range/Grill F, Fs

Description

The Vulcan Hart 00-706771-0000A Pilot Assembly W/Nut & Sleeve controls the flow of gas to the burner to ignite it with a 3/16" tubing connection. It is 5-1/4" by 2" long and wide with a nut and sleeve to install. The assembly is placed in the burner system of the appliance, where the pilot flame is placed to ignite the main burner. Its design allows the contact of the spark with the gas to be consistent, which allows the burner to be lit.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 5 in
  • Height: 5 in
  • Width: 2 in

This Part Fits the Following Models

82 models
Vulcan Hart CONV OVEN Vulcan Hart FB18 Vulcan Hart FB24 Vulcan Hart FB361 Vulcan Hart FB362 Vulcan Hart FB363 Vulcan Hart FK361 Vulcan Hart FK362 Vulcan Hart FK363 Vulcan Hart FM12 Vulcan Hart FM18 Vulcan Hart FM361 Vulcan Hart FM362 Vulcan Hart FM363 Vulcan Hart FV361 Vulcan Hart FV362 Vulcan Hart FV363 Vulcan Hart OVEN STD IGNIT Vulcan Hart SCB25 Vulcan Hart SCB30 Vulcan Hart SCB36 Vulcan Hart SCB47 Vulcan Hart SCB60 Vulcan Hart SCB72 Vulcan Hart SCB84 Vulcan Hart SCB96 Vulcan Hart STD OVEN Vulcan Hart V1G12M Vulcan Hart V1G12S Vulcan Hart V1G24M Vulcan Hart V1G24S Vulcan Hart V212M Vulcan Hart V212S Vulcan Hart V218M Vulcan Hart V218S Vulcan Hart V2H36 Vulcan Hart V2H36C Vulcan Hart V2H36M Vulcan Hart V2H36S Vulcan Hart V3036 Vulcan Hart V3036C Vulcan Hart V3036M Vulcan Hart V3036S Vulcan Hart V3G36 Vulcan Hart V3G36C Vulcan Hart V3G36M Vulcan Hart V3G36S Vulcan Hart V424M Vulcan Hart V424S Vulcan Hart V436 Vulcan Hart V436C Vulcan Hart V436M Vulcan Hart V436S Vulcan Hart V636 Vulcan Hart V636C Vulcan Hart V636M Vulcan Hart V636S Vulcan Hart VCCB25 Vulcan Hart VCCB30 Vulcan Hart VCCB36 Vulcan Hart VCCB47 Vulcan Hart VCCB60 Vulcan Hart VCCB72 Vulcan Hart VCCB84 Vulcan Hart VK36 Vulcan Hart VO236 Vulcan Hart VS12F Vulcan Hart VS12M Vulcan Hart VS12S Vulcan Hart VS12T Vulcan Hart VS18M Vulcan Hart VS18S Vulcan Hart VS18T Vulcan Hart VS24F Vulcan Hart VS24M Vulcan Hart VS24S Vulcan Hart VS24T Vulcan Hart VS36F Vulcan Hart VS36M Vulcan Hart VS36S Vulcan Hart VS36T Vulcan Hart VV36
Showing of 82.0

HOBART:

6771-A 6771A 706771-0000A 706771-A 706771A

VULCAN HART:

6771-A 6771A 706771-0000A 706771-A 706771A

Step1: Turn off gas supply and allow equipment to cool completely before starting.

Step2: Remove existing pilot assembly, noting tubing connections and mounting position carefully.

Step3: Install new pilot assembly using nut and sleeve, ensuring tight, leak-free fittings.

Step4: Reconnect gas line, check alignment, then test for leaks with solution.

Step5: Relight pilot following manufacturer instructions and verify stable flame operation.

  • What maintenance is required for the Vulcan Hart 00-706771-0000A Pilot Assembly?

    Inspect the pilot assembly regularly for carbon buildup, clogging, or loose fittings. Clean the orifice and tubing gently to maintain steady gas flow and accurate ignition. Ensure the nut and sleeve are tight to prevent gas leaks and maintain safe operation.

  • What are common issues with the Vulcan Hart 00-706771-0000A Pilot Assembly?

    • Pilot flame not igniting due to clogged orifice or debris buildup.
    • Weak or unstable flame caused by restricted gas flow.
    • Gas leakage from loose nut or sleeve connections.
    • Misalignment of tubing leading to inconsistent burner performance.
