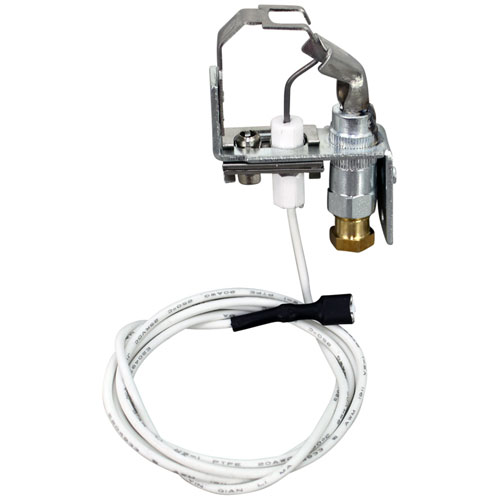

Garland CK1935802 Natural Gas Pilot Assembly W/Adaptor 2-Wire Lead & Spade Terminals 36"

SKU: CK1935802 1-CK1935802 Brand:
Garland
Availability:
In Stock
(0)
$67.89 Price reduced from $143.83
Save $75.94
Have a Question? +1 (866) 863-0907

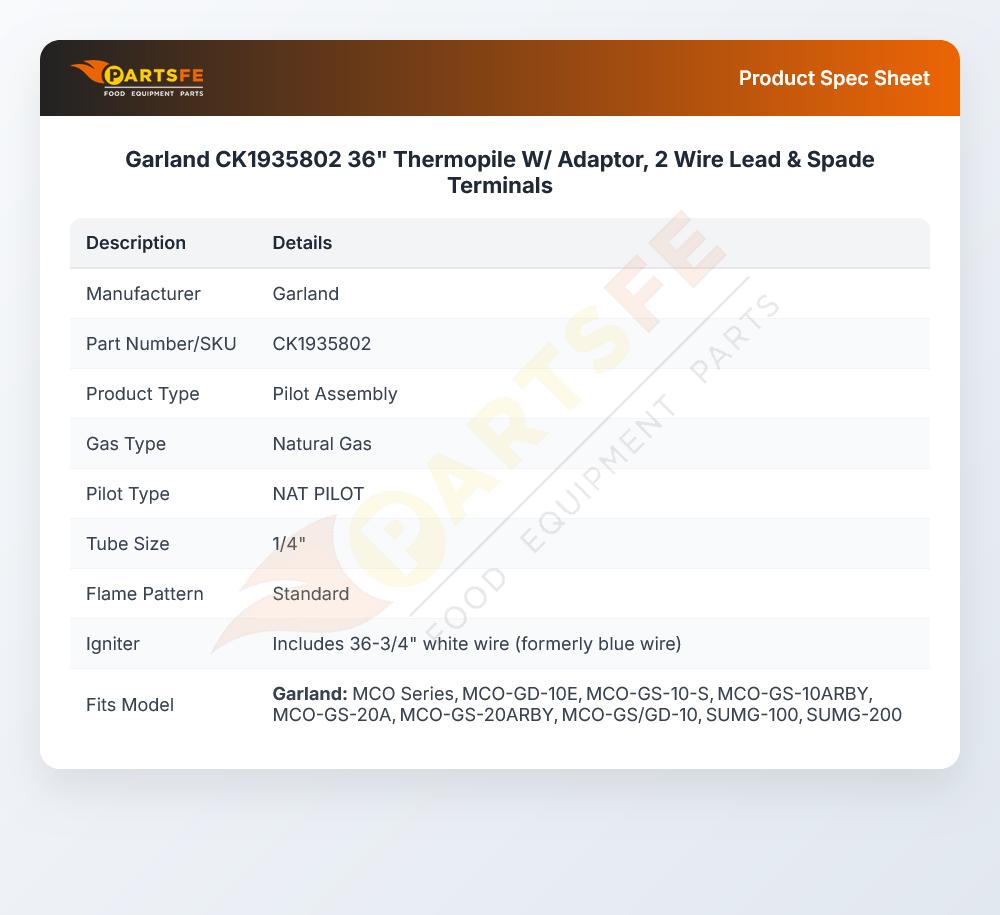

Specifications:

  • Nat Pilot, Factory # Honeywell Q34551B1004,
  • Tube Size 1/4",
  • Flame Pattern Standard, Igniter W/ 36-3/4" White Wire, (Was
  • Blue Wire).
  • Lp Orifice # 26-2044
  • Nat Orifice #26-2043
  • Garland Oven Model Mco

Description

The Garland CK1935802 Natural Gas Pilot Assembly is a flame controlled part that is used to start the main burner on equipment that is compatible with commercial cooking equipment. It is interconnected with the ignition and safety control system with a 36" two-wire lead having spade terminals on both ends. The pilot has a constant flame that warms or a flame sensor to ensure that there is a safe gas flow and the main burner is not turned on. This assembly is installed in the burner compartment and is essential for ignition consistency, flame stability, and heating performance in all commercial cooking.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2.75 in
  • Height: 0.75 in
  • Width: 1.75 in

GARLAND:

1814901 1935802 1935802-NS 1935802NS GL1814901 GL1935802 GL1935802-NS GL1935802NS

Step1: Shut off the gas supply and disconnect electrical power to the equipment before servicing.

Step2: Remove the burner access panel to reach the existing pilot assembly.

Step3: Label and disconnect the pilot tubing, thermocouple, and ignition wire carefully.

Step4: Remove mounting screws and take out the old pilot assembly from the burner bracket.

Step5: Install the new pilot assembly in the same orientation and secure it firmly.

Step6: Reconnect the gas line, thermocouple, and igniter wiring to the correct fittings.

Step7: Restore gas and power, then check all connections for leaks using a soap solution.

  • What maintenance is required for the Garland CK1935802 Pilot Assembly?

    Regularly inspect the pilot assembly for dirt, grease, or carbon buildup around the burner and terminals. Check the wiring connections and spade terminals for secure attachment and signs of wear. Keep the gas pathway clear to maintain accurate ignition and stable flame performance.

  • What are common issues with the Garland CK1935802 Pilot Assembly?

    • Weak or inconsistent pilot flame.
    • Ignition failure due to loose wire connections.
    • Damaged spade terminals causing intermittent operation.
    • Gas flow blockage from debris buildup.
    • Pilot outage caused by faulty adaptor or lead wiring.
