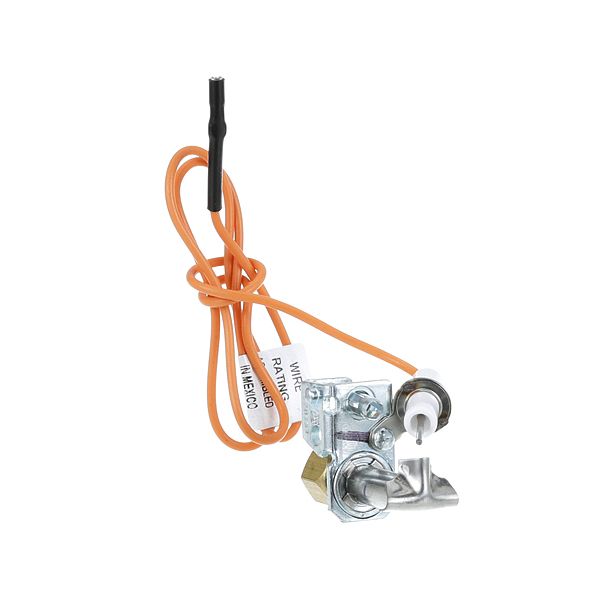

Garland 2290404 Oven Natural Gas Pilot Assembly 0.026 Orifice

Rating:
5 5 1
1  Review Add Your Review
Special Price $75.47 Regular Price $116.29
In stock
SKU
2290404
Add to Wish List
Griddle & Grill Parts, Gas Grill Orifices, Shop by manufacturers
Manufacturer:
The Garland 2290404 Griddle Pilot Assembly Natural Gas is used to ignite the main burner by directing a small controlled stream of natural gas through the 0.026" orifice to create a pilot flame. It works by providing a constant supply of gas to the pilot tip where it ignites to allow the main burner to be lit as required. The assembly is mounted on the front or side of the griddle and it is placed in such a way that it is facing the main burner to ignite well. It enables the control of the flame to be placed accurately and the unit to be used consistently through the cooking cycles.

Dimensions

  • Length: 3 In
  • Width: 2.5 In
  • Height: 0.75 In
  • Weight: 0.25 lbs
https://partsfe.com/media/catalog/product/g/a/garland-2290404-oven-natural-gas-pilot-assembly-0-026-orifice-93789-2.jpg
Manufacturer Name: Garland
Product Number: 2290404
OEM Part Number: 2290404
Product Description: Pilot Assy Ng .026 Orifice
Similar Models:GL2290404 - Garland
Dimensions:
Length:3in/7.62cm
Width:2.5in/6.35cm
Height:0.75in/1.9cm
Weight:0.25lbs/113.4g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

Replaces Parts
GARLAND:
-2290404, 2290404, GL2290404
Reviews 1
Write Your Own Review
You're reviewing:Garland 2290404 Oven Natural Gas Pilot Assembly 0.026 Orifice
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Garland 2290404 Pilot Assembly?

Regularly inspect the pilot assembly for dirt, grease, or carbon buildup around the orifice and flame area. Clean the assembly carefully using compressed air or a soft brush to maintain stable gas flow and ignition performance. Check gas connections for leaks and ensure the flame burns evenly.

What are common issues with the Garland 2290404 Pilot Assembly?

  • Clogged orifice causing weak flame.
  • Inconsistent ignition.
  • Gas leakage or loose fittings.
  • Uneven burner flame pattern.
  • Pilot flame dropout in windy conditions.
  • Delayed ignition due to low gas pressure.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and disconnect power to oven; allow unit to cool completely.

Step2: Remove access panel and disconnect old pilot assembly from gas line and mounting bracket.

Step3: Install new pilot assembly, ensuring correct alignment and secure fittings; tighten connections.

Step4: Reconnect gas line, check for leaks using leak solution.

Step5: Restore power, ignite pilot, and verify stable flame; adjust if necessary.
