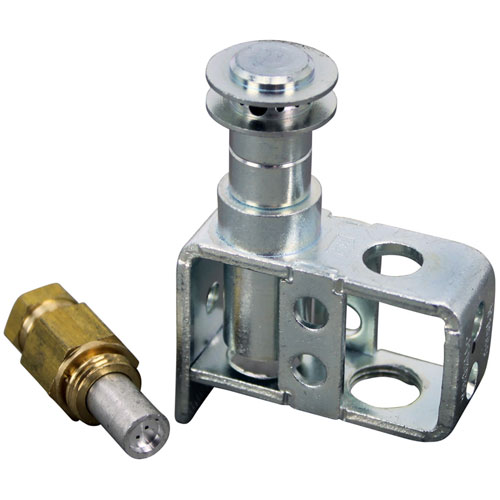

Garland 227041 Oven Tube Pilot Burner 3/16" W/ Standard Flame Pattern R/H

SKU: 227041 1-227041 Brand:
Garland
Availability:
In Stock
(0)
$61.29 Price reduced from $129.85
Save $68.56
Have a Question? +1 (866) 863-0907

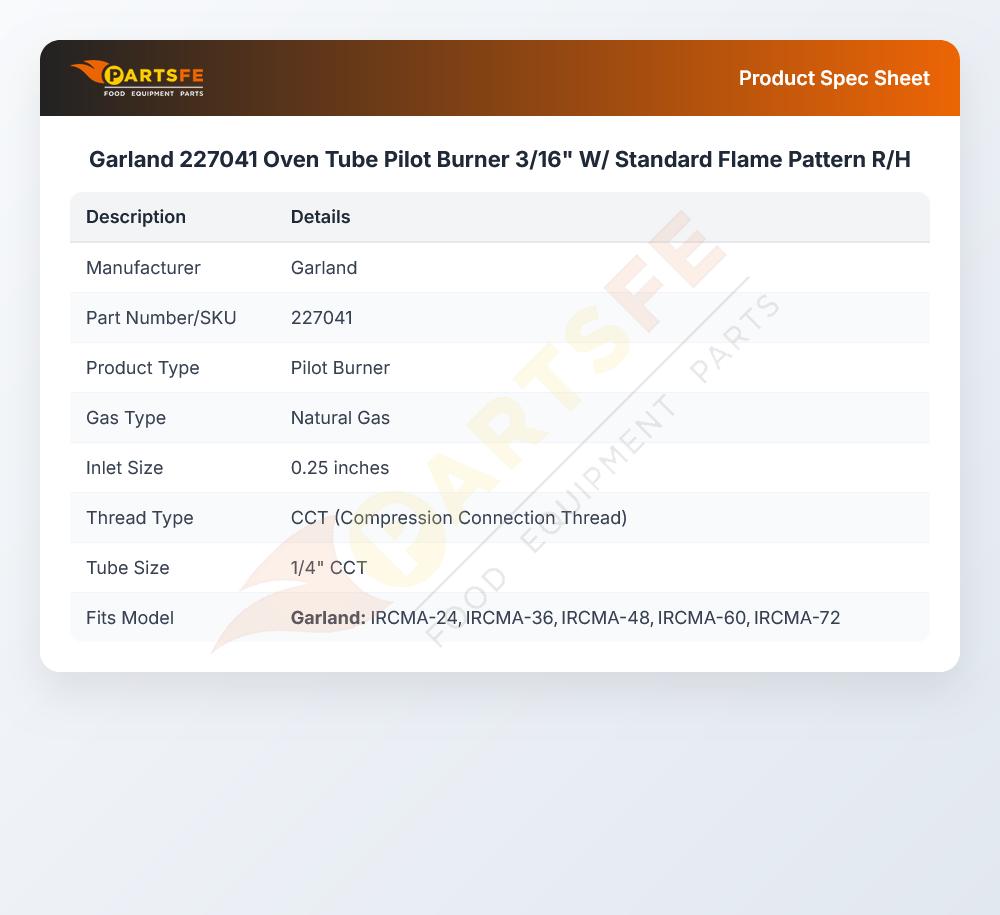

Specifications:

  • Nat Pilot, Factory # J115Uga-1, J115Dga-1,
  • Tube Size 1/4"Cct,
  • Us Range
  • Broiler/Cheesemelter Series: Bs-W, Ircm, Ircma.

Description

The Garland 227041 Oven Pilot Burner is a small gas burner that is used to light up the primary commercial cooking system. It is installed in the combustion system of the oven and can supply a continuous flame that will provide the ignition of the primary burners. This element is necessary in the gas delivery system of the oven it continues to operate consistently in the safe start-ups. Through controlled pilot ignition, it provides an efficient and safe way to operate the oven.

Dimensions:

  • Weight: 0.15 lbs
  • Length: 1.63 in
  • Height: 2.25 in
  • Width: 0.63 in

GARLAND:

227041-1

JOHNSON CONTROLS:

J115DGA-1 J115UGA-1

Step1: Turn off gas supply and power completely.

Step2: Disconnect the old pilot burner assembly safely.

Step3: Clean mounting area thoroughly and remove debris.

Step4: Position the new pilot burner carefully and align it properly.

Step5: Secure fittings tightly in place to ensure a tight seal.

Step6: Reconnect the gas line securely, and check the alignment.

Step7: Test flame carefully, check leaks before use safety warnings.

  • What maintenance is required for the Garland 227041 Pilot Burner?

    Inspect the pilot burner regularly for carbon buildup and clean the tube and flame ports using a soft brush. Ensure gas connections are tight and leak-free. Proper alignment maintains stable ignition and better, efficient oven operation.

  • What are common issues with the Garland 227041 Pilot Burner?

    • Weak or delayed ignition.
    • Clogged pilot tube or flame ports.
    • Uneven or flickering flame.
    • Gas flow restrictions.
    • Igniter malfunction.
    • Pilot flame outage.
