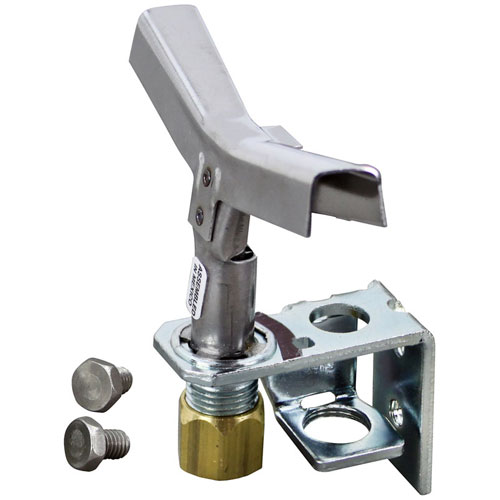

Garland CK2206401 Pilot Burner

SKU: CK2206401 1-CK2206401 Brand:
Garland
Availability:
In Stock
(0)
$32.05 Price reduced from $60.23
Save $28.18
Have a Question? +1 (866) 863-0907

Specifications:

  • Lp Pilot, Factory # 6Ch244, Tube Size 1/4" Cct,
  • Flame Pattern 3 Way,
  • 1/4" Cct Std Nut & Sleeve,
  • Lp Orifice A1100, M-275, # 261556 Size .016
  • Nat Orifice A1101, M-259, # 261557
  • Garland
  • Range Ir Models M100Rc,Rc,St

Description

Pilot Burner

Dimensions:

  • Weight: 0.11 lbs
  • Length: 2.63 in
  • Height: 1.63 in
  • Width: 2.63 in

GARLAND:

2206401

Step1: Isolate gas supply and ensure power off before service.

Step2: Remove the access panel carefully using a screwdriver from the unit.

Step3: Disconnect the old pilot burner and thermocouple line from the unit.

Step4: Position the new pilot burner into the bracket assembly.

Step5: Reconnect the gas line and thermocouple, ensuring tight seal.

Step6: Check alignment and tighten fasteners firmly per manufacturer's spec.

Step7: Restore gas, leak-test joints, and ignite safely and monitor flame stability.

  • What maintenance is required for the Garland CK2206401 Pilot Burner?

    Clean the pilot orifice regularly to prevent blockage from carbon or debris buildup. Inspect gas lines for leaks and secure fittings. Verify flame quality and ensure proper alignment to maintain accurate ignition and better burner operation.

  • What are common issues with the Garland CK2206401 Pilot Burner?

    • Weak or inconsistent ignition performance.
    • Gas flow restriction or low pressure supply.
    • Flame instability or flickering during operation.
    • Pilot flame outage under load conditions.
