main product photo

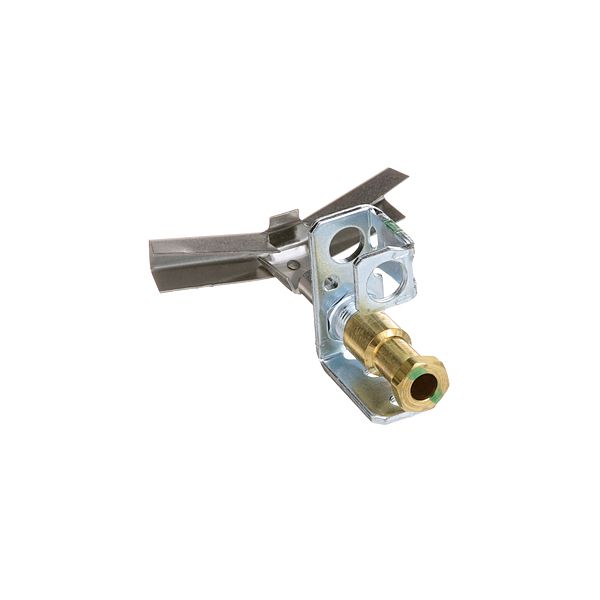

Southbend 1183686 Range Natural Gas Pilot Assembly

Be the first to review this product
Special Price $68.39 Regular Price $69.78
In stock
SKU
1183686
Add to Wish List
Griddle & Grill Parts, Pilot Burners, Shop by manufacturers
Manufacturer:
The Southbend 1183686 Range Natural Gas Pilot Assembly is an essential part for appliances, providing ignition for the burners in stoves and ovens. It works in that there is a small amount of gas that will produce a pilot flame, this will light the main burner when required. This assembly increases the rate of cooking since flame control can be easily and quickly regulated. It also comes equipped with safety features such as a thermocouple that cuts of flow of gas if pilot flame is put off avoiding dangers in the kitchen while using it.

Dimensions

  • Length: 5 In
  • Width: 3 In
  • Height: 3 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/s/o/southbend-1183686-range-natural-gas-pilot-assembly-55400-2.jpg
Manufacturer Name: Southbend
Product Number: 1183686
OEM Part Number: 1183686
Product Description: Nat Pilot, Factory # 6Ch306, Tube Size 1/4",;For Lp Orifice Use # 26-1556;Flame Pattern Left,;Cecilware Griddle, Broiler Bc, Ccb ( After 2/87 )
Similar Models:F175A - Cecilware, F175F - Cecilware, GMF175A - Cecilware, F175A - Grindmaster, F175F - Grindmaster
Dimensions:
Length:4in/10.16cm
Width:4in/10.16cm
Height:1.5in/3.81cm
Weight:0.2lbs/90.72g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

Replaces Parts
CECILWARE:
GRINDMASTER:
SOUTHBEND:
Reviews
Write Your Own Review
You're reviewing:Southbend 1183686 Range Natural Gas Pilot Assembly
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Southbend 1183686 Pilot Assembly?

Regularly inspect the pilot assembly for debris, soot, or grease buildup and clean it using a soft brush or compressed air. Proper maintenance can maintain a steady flame and prevents ignition issues. Always turn off gas before servicing.

What are common issues with the Southbend 1183686 Pilot Assembly?

  • Weak or inconsistent pilot flame.
  • Pilot failing to ignite or stay lit.
  • Gas flow obstruction or blockage.
  • Faulty thermocouple connection.
  • Irregular flame shape or color.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas supply and allow cooling before starting.

Step2: Remove range panels to access pilot assembly area safely.

Step3: Disconnect old pilot tubing and mounting hardware carefully using tools.

Step4: Install new pilot assembly aligning bracket and gas connections properly.

Step5: Reconnect gas line securely, check fittings for tightness twice.

Step6: Restore gas supply and test pilot ignition function after installation.

Step7: Check for leaks using approved solution, ensure safety before use.
