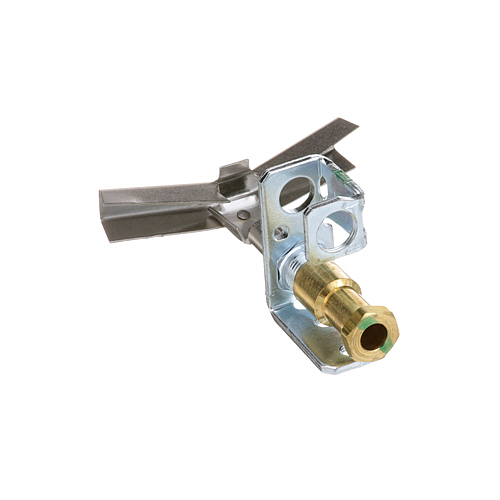

Southbend 1183686 Range Natural Gas Pilot Assembly

SKU: 1183686 1-1183686 Brand:
Southbend
Availability:
In Stock
(0)
$68.39 Price reduced from $69.78
Save $1.39
Have a Question? +1 (866) 863-0907

Description

The Southbend 1183686 Range Natural Gas Pilot Assembly is an essential part for appliances, providing ignition for the burners in stoves and ovens. It works in that there is a small amount of gas that will produce a pilot flame, this will light the main burner when required. This assembly increases the rate of cooking since flame control can be easily and quickly regulated. It also comes equipped with safety features such as a thermocouple that cuts of flow of gas if pilot flame is put off avoiding dangers in the kitchen while using it.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 5 in
  • Height: 3 in
  • Width: 3 in

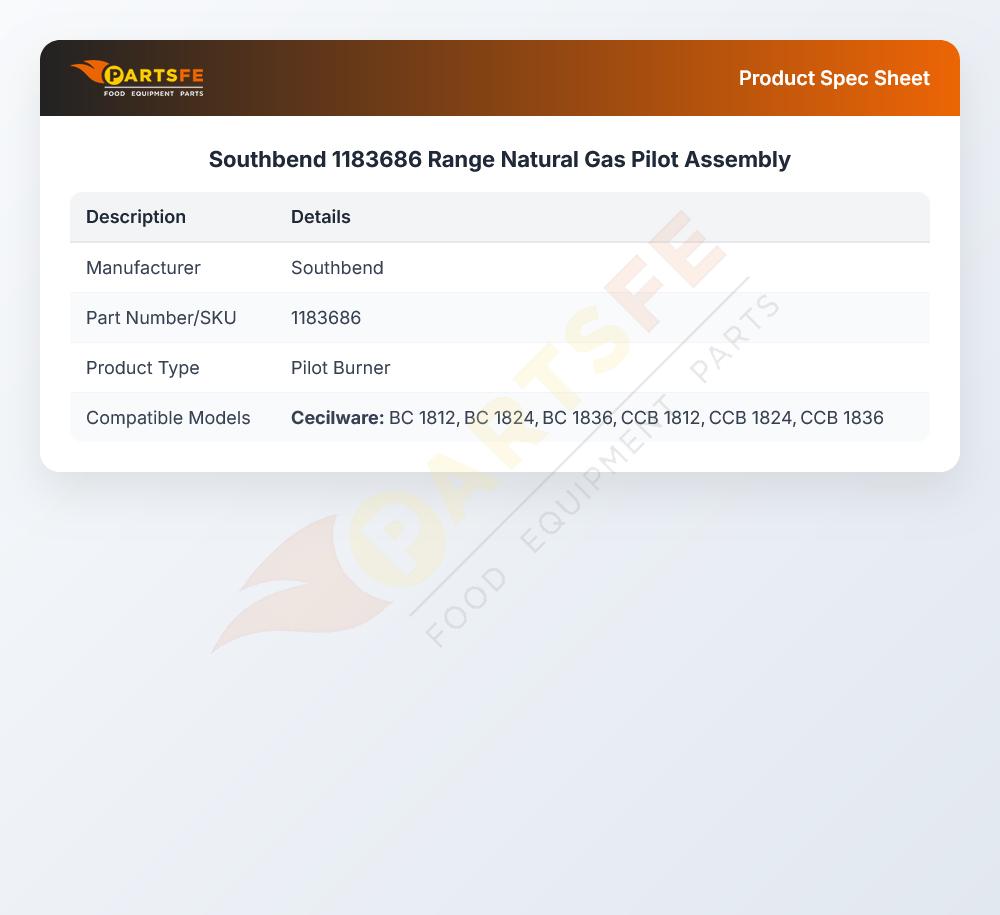

Manufacturer Name: Southbend
Product Number: 1183686
OEM Part Number: 1183686
Product Description: Nat Pilot, Factory # 6Ch306, Tube Size 1/4",;For Lp Orifice Use # 26-1556;Flame Pattern Left,;Cecilware Griddle, Broiler Bc, Ccb ( After 2/87 )
Similar Models:F175A - Cecilware, F175F - Cecilware, GMF175A - Cecilware, F175A - Grindmaster, F175F - Grindmaster
Dimensions:
Length:4in/10.16cm
Width:4in/10.16cm
Height:1.5in/3.81cm
Weight:0.2lbs/90.72g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

CECILWARE:

F175A F175F GMF175A

GRINDMASTER:

F175A F175F

Step1: Turn off gas supply and allow cooling before starting.

Step2: Remove range panels to access pilot assembly area safely.

Step3: Disconnect old pilot tubing and mounting hardware carefully using tools.

Step4: Install new pilot assembly aligning bracket and gas connections properly.

Step5: Reconnect gas line securely, check fittings for tightness twice.

Step6: Restore gas supply and test pilot ignition function after installation.

Step7: Check for leaks using approved solution, ensure safety before use.

  • What maintenance is required for the Southbend 1183686 Pilot Assembly?

    Regularly inspect the pilot assembly for debris, soot, or grease buildup and clean it using a soft brush or compressed air. Proper maintenance can maintain a steady flame and prevents ignition issues. Always turn off gas before servicing.

  • What are common issues with the Southbend 1183686 Pilot Assembly?

    • Weak or inconsistent pilot flame.
    • Pilot failing to ignite or stay lit.
    • Gas flow obstruction or blockage.
    • Faulty thermocouple connection.
    • Irregular flame shape or color.
