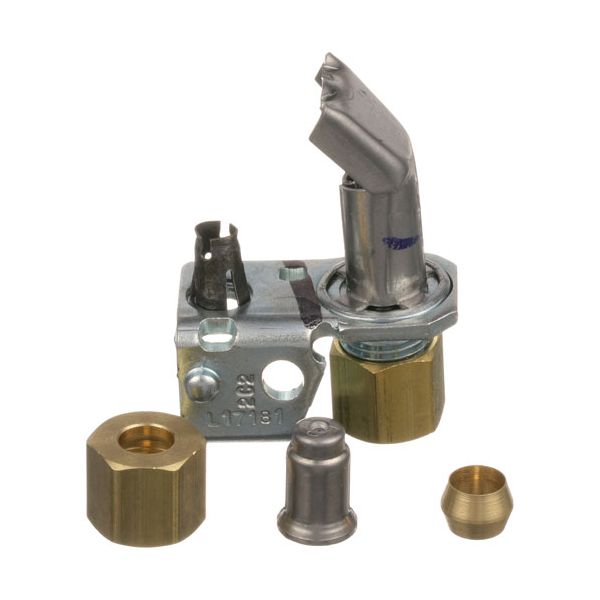

main product photo

Garland 1415301 Range Pilot Burner NAT/LP Flame Pattern 3/16" & 1/4" Tube

Rating:
5 5 1
1  Review Add Your Review
Special Price $22.01 Regular Price $45.35
In stock
SKU
1415301
Add to Wish List
Griddle & Grill Parts, Pilot Burners,
Manufacturer:
The Garland 1415301 Range Pilot Burner NAT/LP Flame Pattern 3/16" & 1/4" Tube controls the flow of gas that is used to ignite the opening of the valve. Gas goes into the attached tubing and out of the orifice to create a continuous pattern that will be used to operate natural or LP. It is mounted in the area of the assembly of the compatible directly over the main ports. This element assists in sustained ignition, and it also fits different sizes to suit the various line attachments.

Dimensions

  • Length: 2 In
  • Width: 1.25 In
  • Height: 0.75 In
  • Weight: 0.1 lbs
https://partsfe.com/media/catalog/product/g/a/garland-1415301-nat-lp-pilot-burner-3-16-1-4-tube-flame-pattern-71175-2.jpg

Product Notes

  • Nat/Lp Pilot, Factory # 2C-2, Tube Size 3/16" & 1/4" ,
  • Flame Pattern Right
  • Dynamic Cooking Systems Model?
  • Garland
  • Grill Series: G24, G36, G48, G60, G72.
  • Range Series: 40/50, G30A, G280 W/Hot Tops.
  • Therma-Tek Model?
More Information
Disable SaleableNo
Replaces Parts
DYNAMIC COOKING SYSTEMS:
U-LINE:
1830-03K
Reviews 1
Write Your Own Review
You're reviewing:Garland 1415301 Range Pilot Burner NAT/LP Flame Pattern 3/16" & 1/4" Tube
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Garland 1415301 Pilot Burner?

Regularly inspect the burner for soot buildup or debris to ensure proper flame pattern. Clean the tubes gently with a soft brush and check connections for leaks. Proper maintenance prevents uneven ignition and improves safety during operation.

What are common issues with the Garland 1415301 Pilot Burner?

  • Irregular or weak flame.
  • Difficulty igniting.
  • Soot accumulation affecting performance.
  • Gas leaks due to loose connections.
  • Flame pattern distortion.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off the gas supply and disconnect power before starting.

Step2: Remove the old pilot burner and detach the tubing carefully.

Step3: Install the new pilot burner, connecting the tubes securely.

Step4: Check the flame pattern alignment and tighten all fittings.

Step5: Restore gas and power, then test ignition and proper operation.
