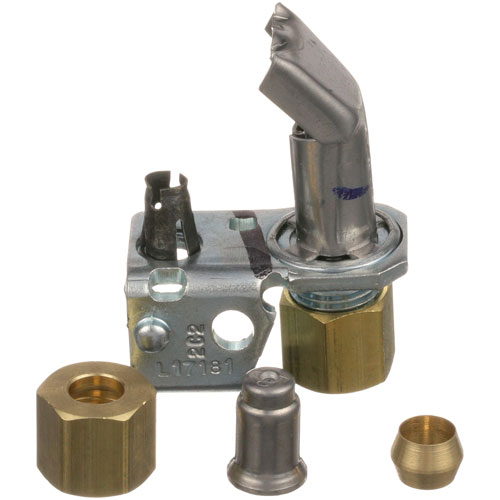

Garland 1415301 Range Pilot Burner NAT/LP Flame Pattern 3/16" & 1/4" Tube

SKU: 1415301 1-1415301 Brand:
Garland
Availability:
In Stock
(1)
$24.93 Price reduced from $51.38
Save $26.45
Have a Question? +1 (866) 863-0907

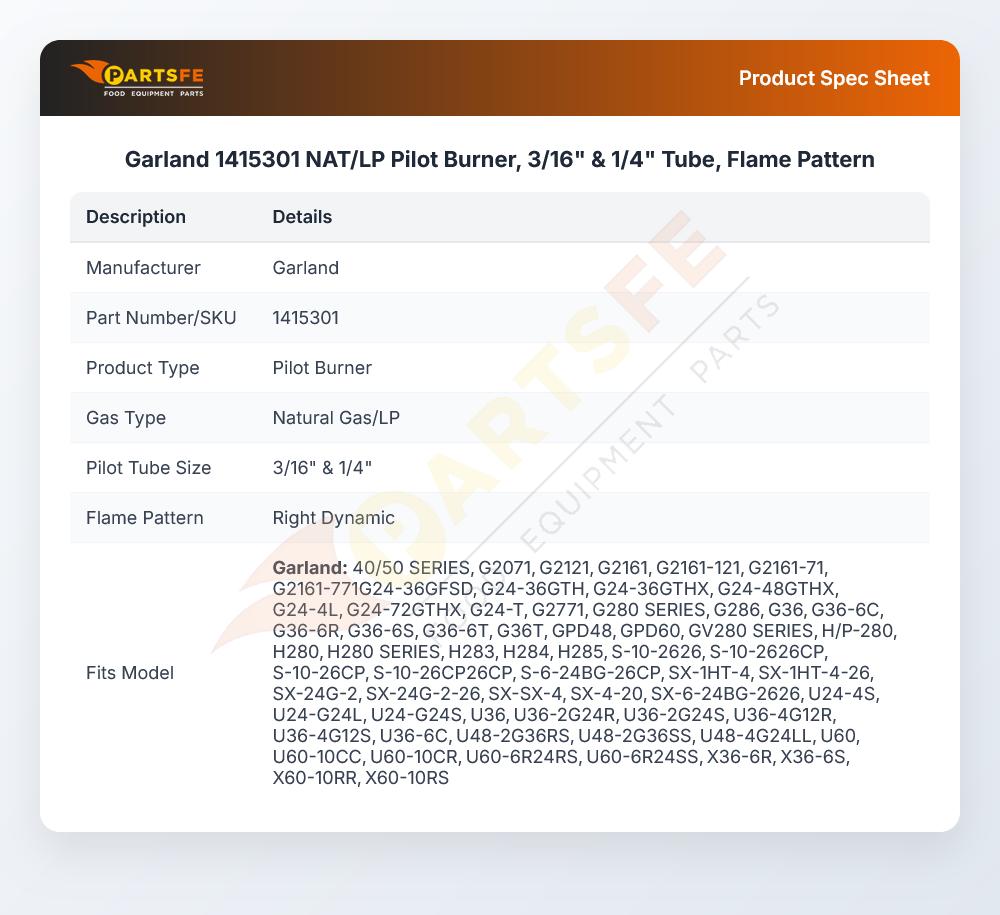

Specifications:

  • Nat/Lp Pilot, Factory # 2C-2, Tube Size 3/16" & 1/4" ,
  • Flame Pattern Right
  • Dynamic Cooking Systems Model?
  • Garland
  • Grill Series: G24, G36, G48, G60, G72.
  • Range Series: 40/50, G30A, G280 W/Hot Tops.
  • Therma-Tek Model?

Description

The Garland 1415301 Range Pilot Burner NAT/LP Flame Pattern 3/16" & 1/4" Tube controls the flow of gas that is used to ignite the opening of the valve. Gas goes into the attached tubing and out of the orifice to create a continuous pattern that will be used to operate natural or LP. It is mounted in the area of the assembly of the compatible directly over the main ports. This element assists in sustained ignition, and it also fits different sizes to suit the various line attachments.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 0.75 in
  • Width: 1.25 in

DYNAMIC COOKING SYSTEMS:

13339-01

GARLAND:

1091898 1091899 1415300 1473700 1473701 GL1091898 GL1091899 GL1415300

U-LINE:

1830-03K

Step1: Turn off the gas supply and disconnect power before starting.

Step2: Remove the old pilot burner and detach the tubing carefully.

Step3: Install the new pilot burner, connecting the tubes securely.

Step4: Check the flame pattern alignment and tighten all fittings.

Step5: Restore gas and power, then test ignition and proper operation.

  • What maintenance is required for the Garland 1415301 Pilot Burner?

    Regularly inspect the burner for soot buildup or debris to ensure proper flame pattern. Clean the tubes gently with a soft brush and check connections for leaks. Proper maintenance prevents uneven ignition and improves safety during operation.

  • What are common issues with the Garland 1415301 Pilot Burner?

    • Irregular or weak flame.
    • Difficulty igniting.
    • Soot accumulation affecting performance.
    • Gas leaks due to loose connections.
    • Flame pattern distortion.
