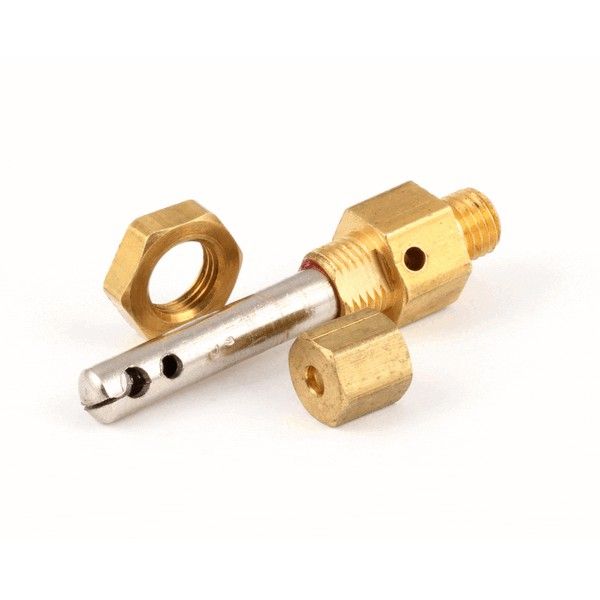

Southbend 1160410 Range Pilot assembly

SKU: 1160410 1-1160410 Brand:
Southbend
Availability:
Out of Stock
(1)
$146.63 Price reduced from $155.33
Save $8.70
Have a Question? +1 (866) 863-0907

Specifications:

  • Pilot 1-1/4" Long Tip,
  • Nat, #73, 2 Ea Holes In Pilot Tip Goes All The Way Through,
  • Small Hole Is #40 & Large Hole Is #30, And Hole In Brass
  • Hex Is #35, Pilot, .024", Nat, Asm, 2" Long Has
  • Lock Nut, 1/8" Cct Nut & Sleeve.
  • Pilot Shield, # 26-2243
  • 2" X 1-3/4" S/S Pilot Shield Used For Pilots
  • # 51-1303 And # 51-1301
  • Southbend Broiler 170-A/D, 171-A/D, 171-40A/C/D, 270-A/D.
  • Southbend Range Series: 136, 142, 162, 300, 400.
  • Series: P Graduated Hot Tops

Description

The Southbend 1160410 Pilot Assembly is an essential part of the range appliances. This has a pilot shield made from stainless steel and measures 1-1/4” while having a 2” x 1-3/4” configuration that provides adequate protection against heat and debris. It works based on the supply of gas in steady quantity for sustaining a pilot flame and the instant change of gas supply causes ignition of main burner. Among them, reliable ignition adds to safety in kitchen operations and generally has to be a main part of any professional kitchen.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2.25 in
  • Height: 0.5 in
  • Width: 0.5 in

Step1: Turn off gas and power supply, allow unit to cool.

Step2: Remove front panel and access pilot area.

Step3: Disconnect old pilot assembly carefully.

Step4: Install new pilot assembly in same position and secure it.

Step5: Reconnect gas line and fittings tightly.

Step6: Check for leaks using soapy water.

Step7: Restore power and test ignition and ensure stable flame, observe flame color for stability.

  • What maintenance is required for the Southbend 1160410 Pilot assembly?

    Clean the range pilot assembly regularly to prevent carbon buildup and ensure a stable flame. Inspect the orifice and tubing for blockages or wear. Proper maintenance ensures consistent ignition, better operation, and accurate heating performance.

  • What are common issues with the Southbend 1160410 Pilot assembly?

    • Weak or unstable pilot flame due to clogged orifice.
    • Ignition failure caused by gas flow restriction or dirt buildup.
    • Pilot outage from misalignment, worn tubing, or inconsistent gas pressure.
    • Delayed relighting issues.
