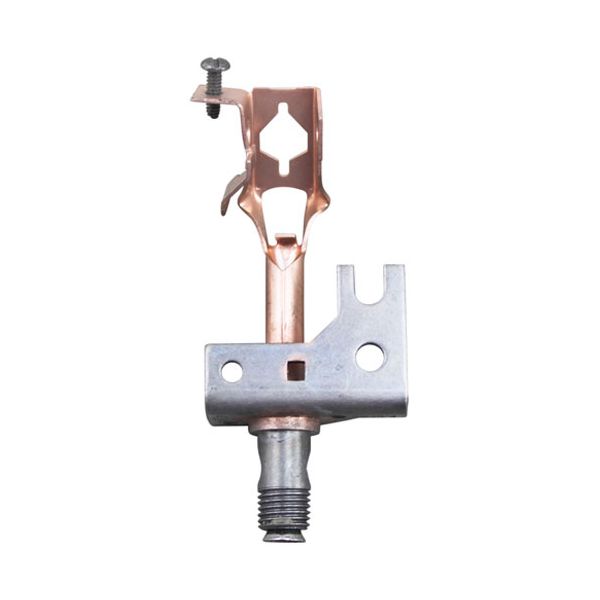

Vulcan Hart 00-414645-00001 Oven Pilot Assembly

Be the first to review this product
Special Price $59.44 Regular Price $117.82
In stock
SKU
00-414645-00001
Add to Wish List
Griddle & Grill Parts, Pilot Burners,
Manufacturer:
The Vulcan Hart 00-414645-00001 Pilot Assembly is an essential part that is meant to help in the ignition. It is made of high-quality material that ensures it can work for long under high heat making your cooking equipment safer and efficient. This pilot assembly is designed for simple installation and to be used exclusively with Vulcan Hart ovens so there is less time spent on maintenance. It gives constant flame ignition, which is important in regulating the heat required for preparing delicious meals, and this is essential.

Dimensions

  • Length: 3.5 In
  • Width: 3.5 In
  • Height: 0.75 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-00-414645-00001-oven-pilot-assembly-33158-2.jpg

Product Notes

  • Nat/Lp Pilot, Factory # 1898-03J, Tube Size 3/16" Cct,
  • Comes With .014" Nat/Lp Universal Orifice.
  • Can Use Pilot Orifice # 26-1128, Nat, .018", 3/16"
  • Can Use Pilot Orifice # 26-1129, Lp, .010", 3/16"
  • Flame Pattern Straight,
  • Southbend
  • Oven All Units W/Co Prefix, Platinum Series
  • (Units With P Prefix)
  • Vulcan Hart
  • Oven Series: Sg (After 5/1/83).
GARLAND:
U-LINE:
1898-039, 43U4
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart 00-414645-00001 Oven Pilot Assembly
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Vulcan Hart 00-414645-00001 Pilot Assembly?

Clean the pilot assembly regularly to remove carbon buildup and grease. Ensure proper gas flow and secure connections. Routine inspection maintains steady ignition and accurate performance. Always shut off gas supply before servicing for safety.

What are common issues with the Vulcan Hart 00-414645-00001 Pilot Assembly?

  • damage or intermittent pilot flame due to clogged orifice.
  • Delayed ignition or failure to light burner.
  • Uneven flame pattern causing inconsistent heating.
  • Gas flow restriction or pilot outage from debris buildup.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Shut off gas and disconnect power to the oven before starting.

Step2: Remove the oven racks and bottom panel to access the burner area.

Step3: Disconnect the old pilot tubing and thermocouple from the safety valve.

Step4: Unmount the old assembly and secure the new pilot in its place.

Step5: Reconnect the gas lines firmly, ensuring no kinks occur.

Step6: Test for leaks using soapy water before relighting the pilot.
