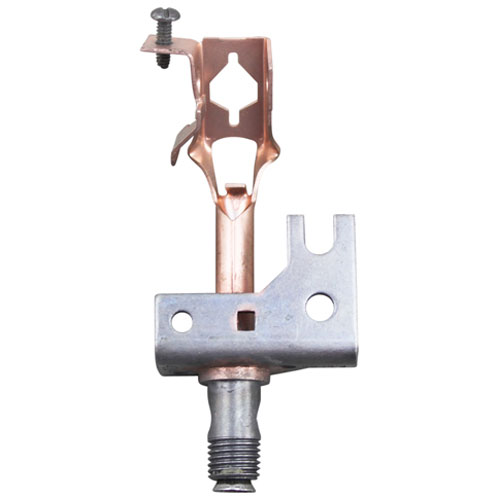

Vulcan Hart 00-414645-00001 Oven Pilot Assembly

SKU: 00-414645-00001 1-00-414645-00001 Brand:
Vulcan Hart
Availability:
In Stock
(0)
$59.44 Price reduced from $117.82
Save $58.38
Have a Question? +1 (866) 863-0907

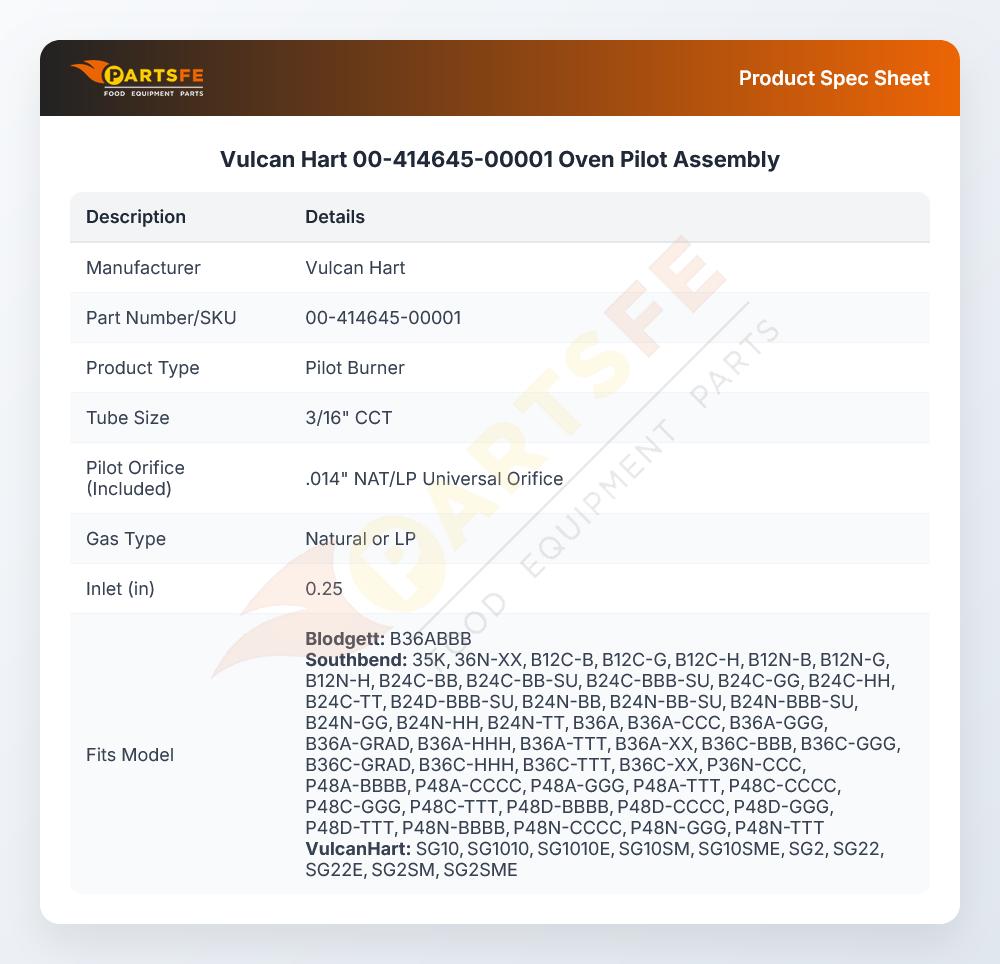

Specifications:

  • Nat/Lp Pilot, Factory # 1898-03J, Tube Size 3/16" Cct,
  • Comes With .014" Nat/Lp Universal Orifice.
  • Can Use Pilot Orifice # 26-1128, Nat, .018", 3/16"
  • Can Use Pilot Orifice # 26-1129, Lp, .010", 3/16"
  • Flame Pattern Straight,
  • Southbend
  • Oven All Units W/Co Prefix, Platinum Series
  • (Units With P Prefix)
  • Vulcan Hart
  • Oven Series: Sg (After 5/1/83).

Description

The Vulcan Hart 00-414645-00001 Pilot Assembly is an essential part that is meant to help in the ignition. It is made of high-quality material that ensures it can work for long under high heat making your cooking equipment safer and efficient. This pilot assembly is designed for simple installation and to be used exclusively with Vulcan Hart ovens so there is less time spent on maintenance. It gives constant flame ignition, which is important in regulating the heat required for preparing delicious meals, and this is essential.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3.5 in
  • Height: 0.75 in
  • Width: 3.5 in

BLODGETT:

BLZ1168263 Z1168263

GARLAND:

227180 227180-1

HOBART:

114645-1 414645-00001 414645-1

SOUTHBEND:

1165734 1168263 1194917 SOU1165734 SOU1168263

U-LINE:

1898-039 43U4

VULCAN HART:

114645-1 414645-00001 414645-1 VH114645-1 VH414645-1

Step1: Shut off gas and disconnect power to the oven before starting.

Step2: Remove the oven racks and bottom panel to access the burner area.

Step3: Disconnect the old pilot tubing and thermocouple from the safety valve.

Step4: Unmount the old assembly and secure the new pilot in its place.

Step5: Reconnect the gas lines firmly, ensuring no kinks occur.

Step6: Test for leaks using soapy water before relighting the pilot.

  • What maintenance is required for the Vulcan Hart 00-414645-00001 Pilot Assembly?

    Clean the pilot assembly regularly to remove carbon buildup and grease. Ensure proper gas flow and secure connections. Routine inspection maintains steady ignition and accurate performance. Always shut off gas supply before servicing for safety.

  • What are common issues with the Vulcan Hart 00-414645-00001 Pilot Assembly?

    • damage or intermittent pilot flame due to clogged orifice.
    • Delayed ignition or failure to light burner.
    • Uneven flame pattern causing inconsistent heating.
    • Gas flow restriction or pilot outage from debris buildup.
