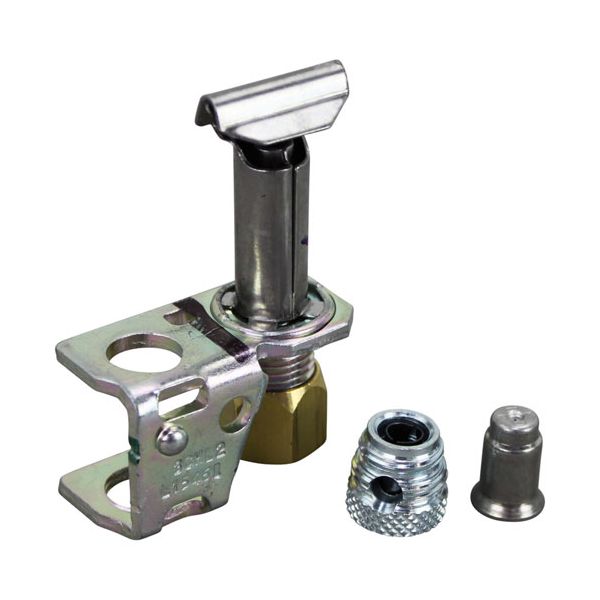

main product photo

Vulcan Hart 00-714269 Pilot Burner NAT/LP

Be the first to review this product
Special Price $55.44 Regular Price $88.00
In stock
SKU
00-714269
Add to Wish List
Griddle & Grill Parts, Pilot Burners,
Manufacturer:
The Vulcan Hart⁠ 00-714269 Pilot‌ Burn⁠er NAT/LP i⁠s a gas ignition com​pon‌e‍nt used in na‍tural g⁠as a​nd liquid pr‌opane appliance‌s. It p​rod⁠uces a sm​all cont‍rolled flame that ignites the main burner in cooking equipme​nt. The assembly is typical​l‍y used in⁠ commercial appliances and similar gas-fired systems where consistent pil​ot operati‍on is re‍qui‍red. It connects⁠ to the gas supply line a⁠nd works wi​thin‌ the ignition system to initiate combustion when the equipment i⁠s turned‌ on. The compon​ent⁠ suppo‍r​ts burn‍er start-u​p and ma‌int​ains readiness for heating⁠ cycles i⁠n cooking units​.

Dimensions

  • Length: 2 In
  • Width: 1.5 In
  • Height: 0.5 In
  • Weight: 0.2 lbs
https://partsfe.com/media/catalog/product/v/u/vulcan-hart-00-714269-nat-lp-pilot-21856-2.jpg

Product Notes

  • Nat/Lp Pilot, Factory # 3Chl-2, 1830-007, Tube Size 1/4",
  • 2-Way Flame Pattern,
  • Lp Orifice .010, # 26-1554
  • Nat Orifice .018, # 26-1555
  • Jade Oven Series: Jslb, Jsr, Jtrh, Jshbi.
  • Wolf Oven Standard Ch,Chr With Ts Or Bas0 Safety.
  • Grill Tyg

A gas pilot burner assembly used in commercial cooking equipment generates a steady ignition flame to light the main burner system. It supports both natural gas and liquid propane applications and features interchangeable orifice sizes (.018 for NAT and .010 for LP) to help maintain proper gas flow and combustion. The 2-way flame pattern helps distribute the pilot flame evenly, supporting consistent ignition across compatible burner systems. A 1/4-inch tube connection provides secure gas delivery within the equipment. By maintaining a stable pilot flame, this burner helps support reliable ignition and normal burner operation in ovens, ranges, and grills. It is commonly used in commercial kitchens, including restaurants and other foodservice environments where dependable burner performance is important. If the pilot burner becomes worn or clogged, replacing it can help restore proper ignition and reduce delayed lighting issues during operation.

Equipment Compatibility:
Common applications for Vulcan Hart Pilot Burner include commercial ovens, ranges, and grills where a consistent pilot flame is required for ignition systems. This Pilot Burner 00-714269 is compatible with commercial equipment from leading brands such as Vulcan Hart, Hobart, Jade Range, Wolf, and more, where a stable pilot flame is required for reliable operation.

Brand Compatibility:
This pilot burner replaces multiple part numbers used across Vulcan Hart, Hobart, Jade Range equipment, and more. Full cross-reference details are provided separately for accurate identification and compatibility matching.

Product Specifications:
Product Type: Pilot Burner
Manufacturer: Vulcan Hart
SKU: 00-714269
Gas Type: Natural Gas (NAT) / Liquid Propane (LP)
Flame Pattern: 2-Way
Tube Size: 1/4 inch
NAT Orifice Size: .018
LP Orifice Size: .010
Factory Reference: 3CHL-2, 1830-007
Application: Ovens, ranges, grills

Key Features:

  • Supports both natural gas and liquid propane operation, allowing the same pilot burner to be used across different fuel systems without modification.
  • The 2-way flame pattern improves ignition coverage by distributing the pilot flame evenly across burner areas, helping ensure consistent startup.
  • A 1/4-inch tube connection provides a secure gas pathway, helping maintain steady and controlled fuel delivery during operation.
  • Equipped with .018 NAT and .010 LP orifice sizes, which regulate gas flow accurately for proper combustion and efficient burner performance.
  • Designed for use in commercial ovens, ranges, and grills, where maintaining a stable pilot flame is critical for reliable ignition and safe operation.

Installation Feedback:

Installation feedback often mentions improved ignition reliability and more stable pilot flame performance after replacement.

Replaces Parts
VULCAN HART:
Reviews
Write Your Own Review
You're reviewing:Vulcan Hart 00-714269 Pilot Burner NAT/LP
Your Rating
FAQS
Customer Questions
What is the Best Electric Griddle?

Electric Griddle is an electronic equipment that uses an electric element as its heat source. It has a large cooking surface often made up of nonstick material. Electric Griddle has a surface which you do not find in the regular stovetop cookware. ...

Read More
What maintenance is required for the Vulcan Hart 00-714269 Pilot Burner?

Regularly inspect the pilot burner for debris, grease buildup, or blockages that may affect flame stability. Clean the orifice and burner ports carefully to maintain proper gas flow. Ensure connections are secure and check for gas leaks. Always turn off gas supply before servicing.

What are common issues with the Vulcan Hart 00-714269 Pilot Burner?

  • Weak or unstable pilot flame.
  • Pilot not igniting or staying lit.
  • Clogged orifice or burner ports.
  • Gas flow irregularities.
  • Soot buildup affecting combustion.
  • Improper flame color or size.

Shipping

We strive to provide our customers with a hassle-free and efficient shopping experience. Our shipping policy ensures the timely delivery of your orders and complete customer satisfaction. View More

Returns

We are committed to ensuring your complete satisfaction with every purchase. We understand that circumstances may arise where you must return a product or request a refund. If for any reason you are not satisfied, you may return the item(s) according to the terms outlined below. View More

Payment Methods

This Payment Policy outlines the terms and conditions governing all payments made for products purchased through our website. By making a purchase, you agree to be bound by this Payment Policy. View More

Installation Steps

Step1: Turn off gas and power; shut off main valve allow cooling.

Step2: Remove existing pilot assembly carefully using proper tools.

Step3: Clean and inspect mounting area for debris or damage.

Step4: Position new pilot and align fittings securely.

Step5: Secure hardware tightly and ensure stability.

Step6: Connect NAT/LP gas line correctly per specification.

Step7: Restore gas, test ignition, and check for leaks using soap solution.
