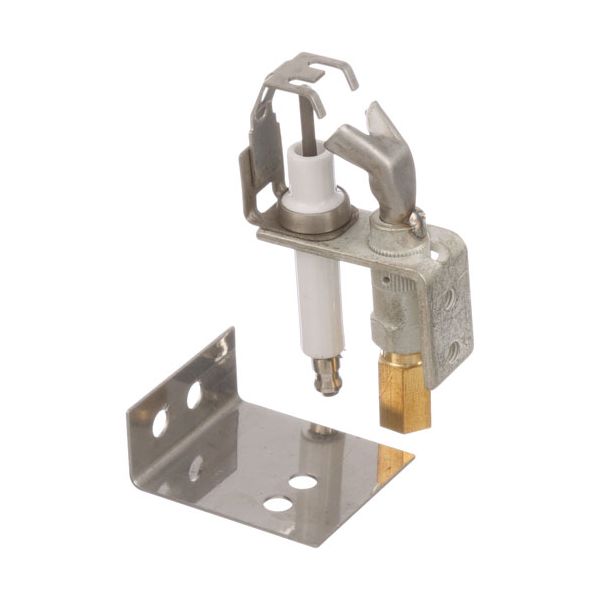

Middleby Marshall 42810-0117 Oven Natural Gas Pilot Igniter Assembly 1/4" Tube Flame Pattern W/ Igniter & Bracket

Rating:

1 Review Add Your Review

Special Price $156.22 Regular Price $281.69

In stock

SKU

42810-0117

Categories: Oven Parts, Ignitors,

Manufacturer:

Middleby Marshall

The Middleby Marshall 42810-0117 Natural Gas Pilot Igniter Assembly is an essential oven part for different models such as PS200-R68 and PS310. This assembly has a 1/4” tube and comes with an igniter and bracket for easy ignition of the main burner. Operating on the principles that natural gas is allowed to flow through the orifice where it is burnt by a pilot flame so as to provide for heating. Advantages are as follows; it has an automatic shut off of gas in case the pilot flame is put off, and it can be used in cooking applications making it suitable for restaurants and food preparation facilities.

Dimensions

Length: 3 In
Width: 1.5 In
Height: 0.5 In
Weight: 0.23 lbs

Product Notes

Nat Pilot, Factory # Q345A1305 , Tube Size 1/4",
Flame Pattern ,W/ Igniter & Bracket
Lp Orifice A2233, # 262044
Nat Orifice A2232, #262043
For Ignition Control Module F393, Ca-246, # 441250
Middleby Marshall
Oven Ps200-R68, Ps220Fs-R68, Ps224-R68, Ps310, Ps360.

Replaces Parts

GARLAND:

1614714, 1614716

MIDDLEBY MARSHALL:

27363-0001, 27363-0002, 42810-0117

Reviews 1

Write Your Own Review

FAQS

Customer Questions

What maintenance is required for the Middleby Marshall 42810-0117 Pilot Igniter Assembly?

Regularly inspect the oven pilot igniter assembly for dirt, grease, or debris buildup that may affect ignition performance. Clean the igniter and tube gently using a soft brush or compressed air. Check connections and bracket stability to ensure proper alignment. Always turn off gas supply before servicing.

What are common issues with the Middleby Marshall 42810-0117 Pilot Igniter Assembly?

Weak or inconsistent pilot flame.
Igniter failure or no spark generation.
Gas flow obstruction in the tube.
Misaligned igniter or bracket causing ignition delays.
Intermittent ignition or flame outages.
