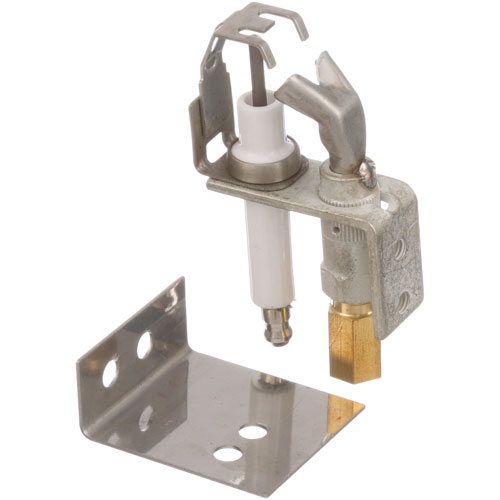

Middleby Marshall 42810-0117 Oven Natural Gas Pilot Igniter Assembly 1/4" Tube Flame Pattern W/ Igniter & Bracket

SKU: 42810-0117 1-42810-0117 Brand:
Middleby Marshall
Availability:
In Stock
(1)
$156.22 Price reduced from $281.69
Save $125.47
Have a Question? +1 (866) 863-0907

Specifications:

  • Nat Pilot, Factory # Q345A1305 , Tube Size 1/4",
  • Flame Pattern ,W/ Igniter & Bracket
  • Lp Orifice A2233, # 262044
  • Nat Orifice A2232, #262043
  • For Ignition Control Module F393, Ca-246, # 441250
  • Middleby Marshall
  • Oven Ps200-R68, Ps220Fs-R68, Ps224-R68, Ps310, Ps360.

Description

The Middleby Marshall 42810-0117 Natural Gas Pilot Igniter Assembly is an essential oven part for different models such as PS200-R68 and PS310. This assembly has a 1/4” tube and comes with an igniter and bracket for easy ignition of the main burner. Operating on the principles that natural gas is allowed to flow through the orifice where it is burnt by a pilot flame so as to provide for heating. Advantages are as follows; it has an automatic shut off of gas in case the pilot flame is put off, and it can be used in cooking applications making it suitable for restaurants and food preparation facilities.

Dimensions:

  • Weight: 0.23 lbs
  • Length: 3 in
  • Height: 0.5 in
  • Width: 1.5 in

GARLAND:

1614714 1614716

MIDDLEBY MARSHALL:

27363-0001 27363-0002

Step1: Turn off gas supply and electrical power to oven to prevent gas leaks.

Step2: Allow oven to cool completely before servicing use protective gloves.

Step3: Remove front panel and access old pilot igniter assembly note wiring positions.

Step4: Disconnect gas line and igniter wiring carefully.

Step5: Mount new assembly with bracket aligned securely.

Step6: Reconnect gas line and igniter check tightness for leaks.

Step7: Restore power test ignition flame pattern and operation.

  • What maintenance is required for the Middleby Marshall 42810-0117 Pilot Igniter Assembly?

    Regularly inspect the oven pilot igniter assembly for dirt, grease, or debris buildup that may affect ignition performance. Clean the igniter and tube gently using a soft brush or compressed air. Check connections and bracket stability to ensure proper alignment. Always turn off gas supply before servicing.

  • What are common issues with the Middleby Marshall 42810-0117 Pilot Igniter Assembly?

    • Weak or inconsistent pilot flame.
    • Igniter failure or no spark generation.
    • Gas flow obstruction in the tube.
    • Misaligned igniter or bracket causing ignition delays.
    • Intermittent ignition or flame outages.
