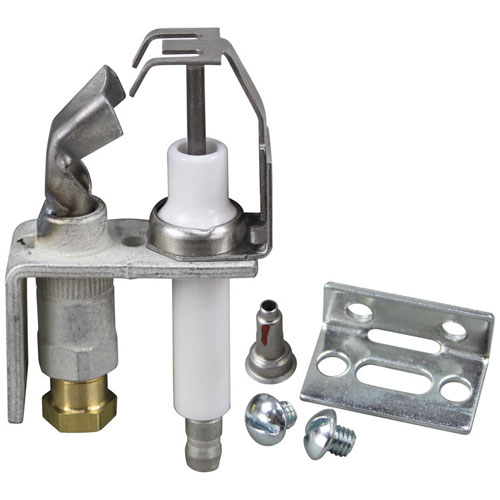

Southbend 9-3380-1 Pilot Burner Assembly NAT/LP Gas

SKU: 9-3380-1 1-9-3380-1 Brand:
Southbend
Availability:
In Stock
(0)
$110.63 Price reduced from $125.00
Save $14.37
Have a Question? +1 (866) 863-0907

Description

The Southbend 9-3380-1 Pilot Burner Assembly NAT/LP Gas provides a small flame to be used in igniting main burners that feed on natural or LP gas. It works by throughputting controlled gas through the pilot orifice creating a steady flame that passes along ignition to the main burner when needed. This assembly is placed next to the burner ports in the heating compartment to have contact with the flame. It is an essential component of the ignition control system, which keeps the burner consistent in the commercial kitchens.

Dimensions:

  • Weight: 0.42 lbs
Manufacturer Name: Southbend
Product Number: 9-3380-1
OEM Part Number: 9-3380-1
Product Description: Nat/Lp Pilot, Factory # Q345a1305, Tube Size 1/4",;Flame Pattern Standard, W/ Igniter;Lp Orifice # 26-2044;Nat Orifice #26-2043
Similar Models:AC-9-3380 - Accutemp, 97-5573 - Market-Forge, 9-3380 - Southbend, 00-845571 - Vulcan-Hart, 00-845572 - Vulcan-Hart, 845571 - Vulcan-Hart, 845572 - Vulcan-Hart, 70PL-0001-NG - Wood-Stone, D70PL-0001-NG - Wood-Stone
Dimensions:
Length:6.75in/17.14cm
Width:4.5in/11.43cm
Height:0.5in/1.27cm
Weight:0.3lbs/136.08g

Choose the best Commercial kitchen & Restaurant equipment parts and supplies from PartsFe!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at 866-863-0907 or contact@partsfe.com

ACCUTEMP:

AC-9-3380

BLODGETT:

42349

CROWN STEAM:

9-3380

MARKET FORGE:

-97-5573 97-5573 97-5574 975574

SOUTHBEND:

-9-3380 9-3380

VULCAN HART:

-00-845571 -845571 00-845571 00-845572 845571 845572

WOOD STONE:

70PL-0001-NG D70PL-0001-NG

Step1: Turn off gas and electrical supply allow appliance to cool.

Step2: Remove access panel to reach pilot assembly area.

Step3: Disconnect the old pilot burner and label tubing connections.

Step4: Install new pilot burner assembly and secure hardware.

Step5: Reconnect gas line and fittings.

Step6: Check alignment and tighten all fasteners.

Step7: Restore gas, test ignition, check for leaks using soapy water.

  • What maintenance is required for the Southbend 9-3380-1 Pilot Burner Assembly?

    Regularly inspect the pilot burner assembly for carbon buildup, debris, and wear that may affect ignition. Clean the pilot orifice gently and ensure all gas fittings are secure and leak-free. regular checks can maintain steady flame performance and better operation.

  • What are common issues with the Southbend 9-3380-1 Pilot Burner Assembly?

    • Pilot fails to light or stay lit.
    • Blocked or dirty orifice restricting gas flow.
    • Weak or unstable flame output.
    • Gas pressure irregularities affecting ignition.
    • Worn or corroded pilot components.
